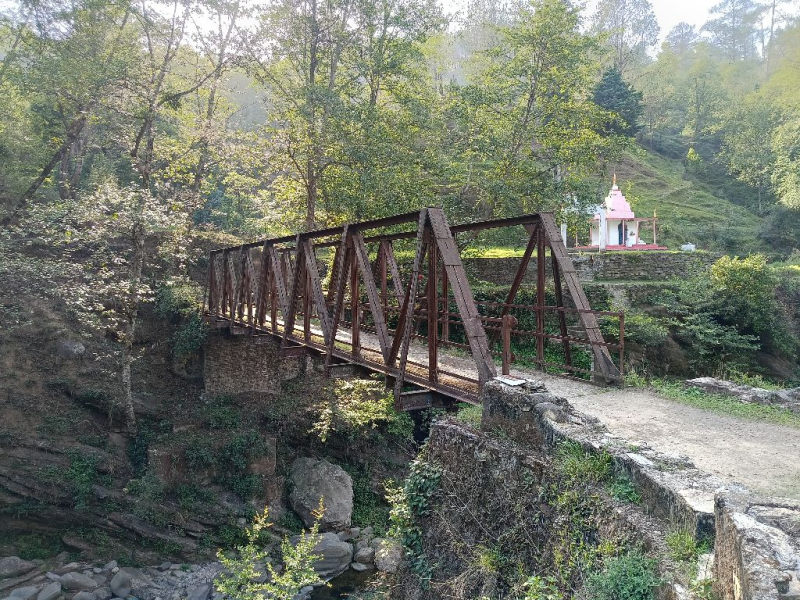

ID :1120 Steel girder Bridge in kalinadi near Rohida

on Chainage 8.000 of Panduwakhal Rohida Panjiyana motor road

In District Chamoli Under CD Gairsain Division

Critical Report on Bridge Condition

10 Jun 2024 1.54% 08 Jun 2024 9.13% 05 Jun 2024 2.26% 11 Dec 2023 5.88%

Form Filled By Vikas Kashyap [SJE115]

# Component Rating %
1 10 ROAD APPROCHES AND DECK 7.41 % 0.49 %
2 10 PARAPETS, RAILINGS AND CRASH BARRIERS 9.88 % 0.66 %
3 10 EXPANSION JOINT AT ABUTMENTS & PIERS 8.89 % 0.59 %
4 10 RIVER 10.10 % 0.67 %
5 10 BEARINGS 8.55 % 0.57 %
6 10 Right Side ABUTMENT, WING WALLS & RETAINING WALLS 10.19 % 0.68 %
7 10 Left Side ABUTMENT, WING WALLS & RETAINING WALLS 9.26 % 0.62 %
8 10 Embankments 9.88 % 0.66 %
9 10 RIVER BED 4.94 % 0.33 %
10 60 SUPERSTRUCTURE 9.63 % 3.85 %
150 Overall 9.12%

Inspection Team

"Birdge in good condition "

(Vikas Kashyap)

JE Civil (Samvida)

on Jun 08, 2024

Detail Report

# Parameter Problem ? How Bad? How Much?
1 ROAD APPROCHES AND DECK Component Weightage 10
A- ROAD SURFACE NEAR BRIDGE
a) Bumpy road surface near bridge? Yes Not So Bad Not Much Qty 1
B- DRAINAGE
a) Badly built road drainage near bridge? Yes Not So Bad Not Much Qty 1
b) Blocked or damaged road drains? Yes Not So Bad Not Much Qty 1
c) Water on the deck? Yes Not So Bad Not Much Qty 1
d) Blocked or damaged deck drains? Yes Not So Bad Not Much Qty 1
C- WEARING COAT
CONCRETE WEARING COURSE
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Spalling? Yes Not So Bad Not Much Qty 1
c) Reinforcement exposed? NO Problem -- -- 0
d) Poor concrete? NO Problem -- -- 0
e) Wear of surface due to small stones? NO Problem -- -- 0
D- KERBS & FOOTPATHS
a) Loose railing fixtures? Yes Not So Bad Not Much Qty 1
a) Damaged or loose kerbs? NO Problem -- -- 0
2 PARAPETS, RAILINGS AND CRASH BARRIERS Component Weightage 10
a) Impact damaged? Yes Not So Bad Not Much Qty 1
b) Loose or damaged fixings? Yes Not So Bad Not Much Qty 1
c) Loose base of posts? Yes Not So Bad Not Much Qty 1
d) Damaged coatirig or paint on steel surface? Yes Not So Bad Not Much Qty 1
e) Corrosion on steel surface? Yes Not So Bad Not Much Qty 1
f) Cracking on Masonary Parapets? Yes Not So Bad Not Much Qty 1
g) Movement or bending of parapet? NO Problem -- -- 0
h) Poor pointing/ Plaster on parapet? Yes Not So Bad Not Much Qty 1
i) Deterioration of bricks or stones? Yes Not So Bad Not Much Qty 1
3 EXPANSION JOINT AT ABUTMENTS & PIERS Component Weightage 10
a) Damage to concrete of deck end or dirt wall near joint? Yes Not So Bad Not Much Qty 1
b) Debris or vegetation in joint? Yes Not So Bad Not Much Qty 1
c) Loose or damaged fixtures? Yes Not So Bad Not Much Qty 1
d) Damage or corrosion to metal parts? Yes Not So Bad Not Much Qty 1
e) Damage to rubber waterseals? NO Problem -- -- 0
4 RIVER Component Weightage 10
A- BLOCKAGES IN WATERWAY
a) Debris against piers or abutments? Yes Not So Bad Not Much Qty 1
b) Remains of old bridge under or upstream of the bridge? Yes Not So Bad Not Much Qty 1
c) Fencing or buildings under bridge? Yes Not So Bad Not Much Qty 1
d) Trees or bushes.growing under bridge? NO Problem -- -- 0
B- CHANGE IN RIVER COURSE
a) River changing path upstream of bridge? Yes Not So Bad Not Much Qty 1
b) New islands forming upstream of bridge? Yes Not So Bad Not Much Qty 1
C- RIVER TRAINING WORKS
a) River attack beyond the upstream end of river training works? Yes Not So Bad Not Much Qty 1
b) Damage to walls? Yes Not So Bad Not Much Qty 1
c) Loss of pitching? Yes Not So Bad Not Much Qty 1
d) Damage to crates, timber, fencing, etc.? Yes Not So Bad Not Much Qty 1
e) Damage to trees? Yes Not So Bad Not Much Qty 1
5 SUPERSTRUCTURE Component Weightage 60
STEEL GIRDERS
General
a) Impact damage to girders, trusses or bracings? Yes Not So Bad Not Much Qty 1
b) Debris or vegetation on beams, girders, trusses bracings or joints? Yes Not So Bad Not Much Qty 1
c) Water coming through the deck? Yes Not So Bad Not Much Qty 1
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? NO Problem -- -- 0
e) Not enough vertical & horizontal clearances? Yes Not So Bad Not Much Qty 1
STEEL GIRDERS AND BRACINGS
a) Deterioration of paint or galvanising Yes Not So Bad Not Much Qty 1
b) Corrosion? Yes Not So Bad Not Much Qty 1
c) Bends in webs, flanges, stiffeners or bracings? Yes Not So Bad Not Much Qty 1
d) Loose bolts or rivets? NO Problem -- -- 0
e) Cracking? Yes Not So Bad Not Much Qty 1
STEEL UNDERSIDE OF DECK
a) Deterioration of paint or galvanising? Yes Not So Bad Not Much Qty 1
b) Corrosion? Yes Not So Bad Not Much Qty 1
c) Bends in stringers or plates? Yes Not So Bad Not Much Qty 1
d) Loose bolts or rivets? Yes Not So Bad Not Much Qty 1
e) Cracking? Yes Not So Bad Not Much Qty 1
6 BEARINGS Component Weightage 10
METAL BEARINGS
a) Debris or vegetation around bearings? Yes Not So Bad Not Much Qty 1
b) Bad drainage? Yes Not So Bad Not Much Qty 1
c) Not enough room for the bridge span to move? Yes Not So Bad Not Much Qty 1
d) Bearing not seated properly? Yes Not So Bad Not Much Qty 1
e) Bridge span not seated properly on bearing? Yes Not So Bad Not Much Qty 1
f) Damaged bedding mortar? Yes Not So Bad Not Much Qty 1
g) Damaged or loose earthquake restraints? Yes Not So Bad Not Much Qty 1
METAL BEARINGS
a) Parts not properly seated? Yes Not So Bad Not Much Qty 1
b) Parts not free to move? NO Problem -- -- 0
c) Problem with the lubrication system? Yes Not So Bad Not Much Qty 1
d) Sliding surfaces damaged? NO Problem -- -- 0
e) Cracks or bends in metal parts/ Bearing? Yes Not So Bad Not Much Qty 1
f) Corrosion of metal parts? NO Problem -- -- 0
7 Right Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10
A- GENERAL
a) Erosion or scour at abutment? NO Problem -- -- 0
b) Damage to foundation? Yes Not So Bad Not Much Qty 1
c) Movement of abutment? Yes Not So Bad Not Much Qty 1
d) Debris against abutment? NO Problem -- -- 0
e) Vegetation growing on-or in abutment? Yes Not So Bad Not Much Qty 1
f) Scour near to retaining walls? Yes Not So Bad Not Much Qty 1
g) Movement of retaining walls? NO Problem -- -- 0
h) Water leaking down through the expansion joint? Yes Not So Bad Not Much Qty 1
B- DRAINAGE SYSTEM
a) Not enough weepholes? Yes Not So Bad Not Much Qty 1
b) Weepholes not working? Yes Not So Bad Not Much Qty 1
c) Water leaking through the abutment? Yes Not So Bad Not Much Qty 1
C- CONCRETE WALLS
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Spalling? Yes Not So Bad Not Much Qty 1
c) Corrosion of reinforcement? Yes Not So Bad Not Much Qty 1
d) Poor concrete? Yes Not So Bad Not Much Qty 1
D- MASONRY WALLS
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Bulging? Yes Not So Bad Not Much Qty 1
c) Poor pointing? NO Problem -- -- 0
d) Deterioration of bricks or stones? Yes Not So Bad Not Much Qty 1
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT
a) Scour at base of slopes? Yes Not So Bad Some Qty 2
b) Slippage of fill? Yes Not So Bad Some Qty 2
c) Erosion of fill? Yes Not So Bad Not Much Qty 1
d) Cracking of road or embankment edge? Yes Not So Bad Not Much Qty 1
e) Piping failure of fill? Yes Not So Bad Not Much Qty 1
8 Left Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10
A- GENERAL
a) Erosion or scour at abutment? Yes Not So Bad Not Much Qty 1
b) Damage to foundation? Yes Not So Bad Not Much Qty 1
c) Movement of abutment? Yes Not So Bad Not Much Qty 1
d) Debris against abutment? NO Problem -- -- 0
e) Vegetation growing on-or in abutment? Yes Not So Bad Not Much Qty 1
f) Scour near to retaining walls? Yes Not So Bad Not Much Qty 1
g) Movement of retaining walls? Yes Not So Bad Not Much Qty 1
h) Water leaking down through the expansion joint? Yes Not So Bad Not Much Qty 1
B- DRAINAGE SYSTEM
a) Not enough weepholes? Yes Not So Bad Not Much Qty 1
b) Weepholes not working? Yes Not So Bad Not Much Qty 1
c) Water leaking through the abutment? Yes Not So Bad Not Much Qty 1
C- CONCRETE WALLS
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Spalling? Yes Not So Bad Not Much Qty 1
c) Corrosion of reinforcement? NO Problem -- -- 0
d) Poor concrete? NO Problem -- -- 0
D- MASONRY WALLS
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Bulging? Yes Not So Bad Not Much Qty 1
c) Poor pointing? Yes Not So Bad Some Qty 2
d) Deterioration of bricks or stones? NO Problem -- -- 0
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT
a) Scour at base of slopes? Yes Not So Bad Not Much Qty 1
b) Slippage of fill? Yes Not So Bad Not Much Qty 1
c) Erosion of fill? NO Problem -- -- 0
d) Cracking of road or embankment edge? Yes Not So Bad Not Much Qty 1
e) Piping failure of fill? Yes Not So Bad Not Much Qty 1
9 Embankments Component Weightage 10
A- STONE PITCHING SLOPE PROTECTION
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Poor pointing? Yes Not So Bad Not Much Qty 1
c) Scour or erosion at edge? Yes Not So Bad Not Much Qty 1
d) Pieces broken off? Yes Not So Bad Not Much Qty 1
e) Piping failure of fill? NO Problem -- -- 0
B- SLOPE PROTECTION WITH CRATES
a) Not much movement of crates? Yes Not So Bad Not Much Qty 1
b) Damage to crates or ties? Yes Not So Bad Not Much Qty 1
C- PITCHING SLOPE PROTECTION WITH CONCRETE BLOCKS
a) Slope getting washed out? Yes Not So Bad Not Much Qty 1
b) Settlement? Yes Not So Bad Not Much Qty 1
10 RIVER BED Component Weightage 10
A- BED PROTECTION AND APRONS
a) Large holes in the river bed? Yes Not So Bad Not Much Qty 1
b) Loss of material Yes Not So Bad Not Much Qty 1
c) Crates broken away from pier or abutment? NO Problem -- -- 0
d) Damage to wires or ties? NO Problem -- -- 0
B- STONE PITCHING OR CONCRETE BED PROTECTION AND APRONS
a) Scour at edge? Yes Not So Bad Not Much Qty 1
b) Cracking? Yes Not So Bad Not Much Qty 1
c) Spalling or stones missing? NO Problem -- -- 0
d) Erosion of surface? NO Problem -- -- 0
e) Corrosion of reinforcement? NO Problem -- -- 0

End of Report
