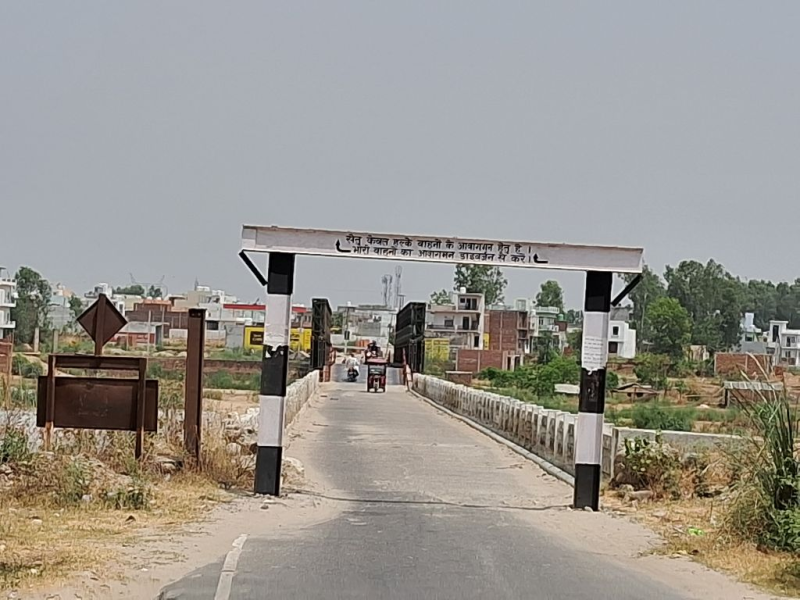

on Chainage 3.000 of Roshanabad Kudkawala Biharigarh state highway
In District Haridwar Under PD Haridwar Division
Critical Report on Bridge Condition
Form Filled By Suresh Kumar [010094654]
Inspection Team
"The Bridge is 5x5 mtr box culvert.box no 21 and 22 is damaged on 2018 further August 2023 span 28 to35 washout and 40 mtr span valley errected for temporary restoration. Only lvr traffics allowed over the Bridge. The Bridge is unsafe for heavy traffic and dpr for new Bridge submitted for sanction "
(Suresh Kumar)
Executive Engineer Civil
on Jun 05, 2024
Detail Report
# | Parameter | Problem ? | How Bad? | How Much? | |
---|---|---|---|---|---|
1 | ROAD APPROCHES AND DECK Component Weightage 10 | ||||
A- ROAD SURFACE NEAR BRIDGE | |||||
a) Bumpy road surface near bridge? | Yes | Bad | Much Qty | 6 | |
B- DRAINAGE | |||||
a) Badly built road drainage near bridge? | NO Problem | -- | -- | 0 | |
b) Blocked or damaged road drains? | NO Problem | -- | -- | 0 | |
c) Water on the deck? | NO Problem | -- | -- | 0 | |
d) Blocked or damaged deck drains? | NO Problem | -- | -- | 0 | |
C- WEARING COAT | |||||
CONCRETE WEARING COURSE | |||||
a) Cracking? | Yes | Bad | Much Qty | 6 | |
b) Spalling? | Yes | Not So Bad | Some Qty | 2 | |
c) Reinforcement exposed? | Yes | Not So Bad | Some Qty | 2 | |
d) Poor concrete? | Yes | Not So Bad | Some Qty | 2 | |
e) Wear of surface due to small stones? | NO Problem | -- | -- | 0 | |
D- KERBS & FOOTPATHS | |||||
a) Loose railing fixtures? | Yes | Not So Bad | Some Qty | 2 | |
a) Damaged or loose kerbs? | NO Problem | -- | -- | 0 | |
2 | PARAPETS, RAILINGS AND CRASH BARRIERS Component Weightage 10 | ||||
a) Impact damaged? | Yes | Bad | Not Much Qty | 4 | |
b) Loose or damaged fixings? | NO Problem | -- | -- | 0 | |
c) Loose base of posts? | NO Problem | -- | -- | 0 | |
d) Damaged coatirig or paint on steel surface? | NO Problem | -- | -- | 0 | |
e) Corrosion on steel surface? | NO Problem | -- | -- | 0 | |
f) Cracking on Masonary Parapets? | NO Problem | -- | -- | 0 | |
g) Movement or bending of parapet? | NO Problem | -- | -- | 0 | |
h) Poor pointing/ Plaster on parapet? | NO Problem | -- | -- | 0 | |
i) Deterioration of bricks or stones? | NO Problem | -- | -- | 0 | |
3 | EXPANSION JOINT AT ABUTMENTS & PIERS Component Weightage 10 | ||||
a) Damage to concrete of deck end or dirt wall near joint? | Yes | Not So Bad | Some Qty | 2 | |
b) Debris or vegetation in joint? | Yes | Not So Bad | Not Much Qty | 1 | |
c) Loose or damaged fixtures? | NO Problem | -- | -- | 0 | |
d) Damage or corrosion to metal parts? | NO Problem | -- | -- | 0 | |
e) Damage to rubber waterseals? | NO Problem | -- | -- | 0 | |
4 | RIVER Component Weightage 10 | ||||
A- BLOCKAGES IN WATERWAY | |||||
a) Debris against piers or abutments? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Remains of old bridge under or upstream of the bridge? | NO Problem | -- | -- | 0 | |
c) Fencing or buildings under bridge? | Yes | Not So Bad | Some Qty | 2 | |
d) Trees or bushes.growing under bridge? | NO Problem | -- | -- | 0 | |
B- CHANGE IN RIVER COURSE | |||||
a) River changing path upstream of bridge? | Yes | Bad | Much Qty | 6 | |
b) New islands forming upstream of bridge? | Yes | Bad | Some Qty | 5 | |
C- RIVER TRAINING WORKS | |||||
a) River attack beyond the upstream end of river training works? | Yes | Not So Bad | Some Qty | 2 | |
b) Damage to walls? | NO Problem | -- | -- | 0 | |
c) Loss of pitching? | NO Problem | -- | -- | 0 | |
d) Damage to crates, timber, fencing, etc.? | NO Problem | -- | -- | 0 | |
e) Damage to trees? | NO Problem | -- | -- | 0 | |
5 | SUPERSTRUCTURE Component Weightage 60 | ||||
SUPERSTRUCTURE -1 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -2 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -3 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -4 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -5 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -6 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -7 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -8 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -9 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -10 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -11 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -12 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -13 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -14 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -15 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -16 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -17 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -18 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -19 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -20 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | Yes | Bad | Some Qty | 5 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | Yes | Bad | Some Qty | 5 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Bad | Much Qty | 6 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -21 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | Yes | Bad | Some Qty | 5 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Bad | Some Qty | 5 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -22 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -23 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -24 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -25 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
e) Less cover to reinforcement? | Yes | Not So Bad | Not Much Qty | 1 | |
SUPERSTRUCTURE -26 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -27 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -28 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Bad | Much Qty | 6 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
e) Less cover to reinforcement? | Yes | Bad | Some Qty | 5 | |
SUPERSTRUCTURE -29 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Very Bad | Much Qty | 9 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -30 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Very Bad | Much Qty | 9 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
e) Less cover to reinforcement? | Yes | Bad | Some Qty | 5 | |
SUPERSTRUCTURE -31 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Very Bad | Much Qty | 9 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
e) Less cover to reinforcement? | Yes | Bad | Some Qty | 5 | |
SUPERSTRUCTURE -32 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Bad | Some Qty | 5 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Very Bad | Much Qty | 9 | |
e) Less cover to reinforcement? | Yes | Bad | Some Qty | 5 | |
SUPERSTRUCTURE -33 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Very Bad | Much Qty | 9 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
e) Less cover to reinforcement? | Yes | Bad | Some Qty | 5 | |
SUPERSTRUCTURE -34 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Very Bad | Much Qty | 9 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Very Bad | Much Qty | 9 | |
e) Less cover to reinforcement? | Yes | Bad | Some Qty | 5 | |
SUPERSTRUCTURE -35 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Very Bad | Much Qty | 9 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
e) Less cover to reinforcement? | Yes | Not So Bad | Not Much Qty | 1 | |
SUPERSTRUCTURE -36 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Very Bad | Much Qty | 9 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Very Bad | Some Qty | 8 | |
e) Less cover to reinforcement? | Yes | Bad | Some Qty | 5 | |
SUPERSTRUCTURE -37 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -38 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -39 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
e) Less cover to reinforcement? | Yes | Not So Bad | Not Much Qty | 1 | |
SUPERSTRUCTURE -40 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
e) Less cover to reinforcement? | Yes | Not So Bad | Not Much Qty | 1 | |
SUPERSTRUCTURE -41 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -42 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -43 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -44 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -45 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -46 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -47 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -48 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -49 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -50 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -51 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -52 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -53 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -54 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
SUPERSTRUCTURE -55 | |||||
TYPE - CONCRETE | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
CONCRETE BEAMS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
CONCRETE UNDERSIDE OF DECK | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
6 | BEARINGS Component Weightage 10 | ||||
NOT APPLICABLE | |||||
7 | Right Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10 | ||||
A- GENERAL | |||||
a) Erosion or scour at abutment? | NO Problem | -- | -- | 0 | |
b) Damage to foundation? | NO Problem | -- | -- | 0 | |
c) Movement of abutment? | NO Problem | -- | -- | 0 | |
d) Debris against abutment? | NO Problem | -- | -- | 0 | |
e) Vegetation growing on-or in abutment? | NO Problem | -- | -- | 0 | |
f) Scour near to retaining walls? | NO Problem | -- | -- | 0 | |
g) Movement of retaining walls? | NO Problem | -- | -- | 0 | |
h) Water leaking down through the expansion joint? | NO Problem | -- | -- | 0 | |
B- DRAINAGE SYSTEM | |||||
a) Not enough weepholes? | NO Problem | -- | -- | 0 | |
b) Weepholes not working? | NO Problem | -- | -- | 0 | |
c) Water leaking through the abutment? | NO Problem | -- | -- | 0 | |
C- CONCRETE WALLS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
D- MASONRY WALLS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Bulging? | NO Problem | -- | -- | 0 | |
c) Poor pointing? | NO Problem | -- | -- | 0 | |
d) Deterioration of bricks or stones? | NO Problem | -- | -- | 0 | |
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT | |||||
a) Scour at base of slopes? | NO Problem | -- | -- | 0 | |
b) Slippage of fill? | NO Problem | -- | -- | 0 | |
c) Erosion of fill? | NO Problem | -- | -- | 0 | |
d) Cracking of road or embankment edge? | NO Problem | -- | -- | 0 | |
e) Piping failure of fill? | NO Problem | -- | -- | 0 | |
8 | Left Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10 | ||||
A- GENERAL | |||||
a) Erosion or scour at abutment? | NO Problem | -- | -- | 0 | |
b) Damage to foundation? | NO Problem | -- | -- | 0 | |
c) Movement of abutment? | NO Problem | -- | -- | 0 | |
d) Debris against abutment? | NO Problem | -- | -- | 0 | |
e) Vegetation growing on-or in abutment? | NO Problem | -- | -- | 0 | |
f) Scour near to retaining walls? | NO Problem | -- | -- | 0 | |
g) Movement of retaining walls? | NO Problem | -- | -- | 0 | |
h) Water leaking down through the expansion joint? | NO Problem | -- | -- | 0 | |
B- DRAINAGE SYSTEM | |||||
a) Not enough weepholes? | NO Problem | -- | -- | 0 | |
b) Weepholes not working? | NO Problem | -- | -- | 0 | |
c) Water leaking through the abutment? | NO Problem | -- | -- | 0 | |
C- CONCRETE WALLS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
D- MASONRY WALLS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Bulging? | NO Problem | -- | -- | 0 | |
c) Poor pointing? | NO Problem | -- | -- | 0 | |
d) Deterioration of bricks or stones? | NO Problem | -- | -- | 0 | |
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT | |||||
a) Scour at base of slopes? | NO Problem | -- | -- | 0 | |
b) Slippage of fill? | NO Problem | -- | -- | 0 | |
c) Erosion of fill? | NO Problem | -- | -- | 0 | |
d) Cracking of road or embankment edge? | NO Problem | -- | -- | 0 | |
e) Piping failure of fill? | NO Problem | -- | -- | 0 | |
9 | Embankments Component Weightage 10 | ||||
A- STONE PITCHING SLOPE PROTECTION | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Poor pointing? | NO Problem | -- | -- | 0 | |
c) Scour or erosion at edge? | NO Problem | -- | -- | 0 | |
d) Pieces broken off? | NO Problem | -- | -- | 0 | |
e) Piping failure of fill? | NO Problem | -- | -- | 0 | |
B- SLOPE PROTECTION WITH CRATES | |||||
a) Not much movement of crates? | NO Problem | -- | -- | 0 | |
b) Damage to crates or ties? | NO Problem | -- | -- | 0 | |
C- PITCHING SLOPE PROTECTION WITH CONCRETE BLOCKS | |||||
a) Slope getting washed out? | NO Problem | -- | -- | 0 | |
b) Settlement? | NO Problem | -- | -- | 0 | |
10 | RIVER BED Component Weightage 10 | ||||
A- BED PROTECTION AND APRONS | |||||
a) Large holes in the river bed? | Yes | Very Bad | Some Qty | 8 | |
b) Loss of material | Yes | Bad | Some Qty | 5 | |
c) Crates broken away from pier or abutment? | Yes | Bad | Some Qty | 5 | |
d) Damage to wires or ties? | Yes | Not So Bad | Not Much Qty | 1 | |
B- STONE PITCHING OR CONCRETE BED PROTECTION AND APRONS | |||||
a) Scour at edge? | Yes | Bad | Some Qty | 5 | |
b) Cracking? | Yes | Bad | Some Qty | 5 | |
c) Spalling or stones missing? | NO Problem | -- | -- | 0 | |
d) Erosion of surface? | Yes | Bad | Some Qty | 5 | |
e) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
11 | PIERs Component Weightage 60 | ||||
Pier-1 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-2 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-3 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-4 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-5 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-6 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-7 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-8 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-9 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-10 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-11 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-12 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-13 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-14 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-15 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-16 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-17 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-18 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-19 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-20 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Damage to foundations? | Yes | Not So Bad | Not Much Qty | 1 | |
c) Movement of pier? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
Pier-21 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Not So Bad | Some Qty | 2 | |
b) Damage to foundations? | Yes | Not So Bad | Some Qty | 2 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | Yes | Not So Bad | Not Much Qty | 1 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Not So Bad | Some Qty | 2 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
Pier-22 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Not So Bad | Some Qty | 2 | |
b) Damage to foundations? | Yes | Not So Bad | Not Much Qty | 1 | |
c) Movement of pier? | Yes | Bad | Some Qty | 5 | |
d) Impact damage? | Yes | Bad | Some Qty | 5 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Bad | Some Qty | 5 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
Pier-23 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Damage to foundations? | Yes | Bad | Some Qty | 5 | |
c) Movement of pier? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Impact damage? | Yes | Not So Bad | Not Much Qty | 1 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Bad | Not Much Qty | 4 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Not So Bad | Some Qty | 2 | |
Pier-24 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
Pier-25 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Damage to foundations? | Yes | Not So Bad | Much Qty | 3 | |
c) Movement of pier? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Impact damage? | Yes | Not So Bad | Not Much Qty | 1 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
Pier-26 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Damage to foundations? | Yes | Not So Bad | Not Much Qty | 1 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | Yes | Not So Bad | Not Much Qty | 1 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
Pier-27 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | Yes | Not So Bad | Not Much Qty | 1 | |
c) Corrosion of reinforcement? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
Pier-28 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Damage to foundations? | Yes | Not So Bad | Not Much Qty | 1 | |
c) Movement of pier? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Impact damage? | Yes | Not So Bad | Not Much Qty | 1 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
Pier-29 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Bad | Some Qty | 5 | |
b) Spalling? | Yes | Bad | Some Qty | 5 | |
c) Corrosion of reinforcement? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
Pier-30 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Bad | Some Qty | 5 | |
b) Spalling? | Yes | Bad | Some Qty | 5 | |
c) Corrosion of reinforcement? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Bad | Much Qty | 6 | |
Pier-31 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Bad | Some Qty | 5 | |
b) Damage to foundations? | Yes | Bad | Some Qty | 5 | |
c) Movement of pier? | Yes | Bad | Some Qty | 5 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Bad | Some Qty | 5 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
Pier-32 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Bad | Some Qty | 5 | |
b) Damage to foundations? | Yes | Bad | Some Qty | 5 | |
c) Movement of pier? | Yes | Bad | Some Qty | 5 | |
d) Impact damage? | Yes | Bad | Some Qty | 5 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Bad | Some Qty | 5 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
Pier-33 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Bad | Some Qty | 5 | |
b) Damage to foundations? | Yes | Bad | Some Qty | 5 | |
c) Movement of pier? | Yes | Bad | Some Qty | 5 | |
d) Impact damage? | Yes | Bad | Some Qty | 5 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Bad | Some Qty | 5 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
Pier-34 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Bad | Some Qty | 5 | |
b) Damage to foundations? | Yes | Bad | Some Qty | 5 | |
c) Movement of pier? | Yes | Bad | Some Qty | 5 | |
d) Impact damage? | Yes | Bad | Some Qty | 5 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Bad | Some Qty | 5 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
Pier-35 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Bad | Some Qty | 5 | |
b) Damage to foundations? | Yes | Bad | Some Qty | 5 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | Yes | Bad | Some Qty | 5 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Bad | Some Qty | 5 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
Pier-36 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Bad | Some Qty | 5 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | Yes | Bad | Some Qty | 5 | |
d) Impact damage? | Yes | Bad | Some Qty | 5 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Bad | Some Qty | 5 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
Pier-37 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Bad | Some Qty | 5 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | Yes | Bad | Some Qty | 5 | |
d) Impact damage? | Yes | Bad | Some Qty | 5 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | Yes | Bad | Some Qty | 5 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Bad | Some Qty | 5 | |
b) Spalling? | Yes | Bad | Some Qty | 5 | |
c) Corrosion of reinforcement? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
Pier-38 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Bad | Some Qty | 5 | |
b) Damage to foundations? | Yes | Bad | Some Qty | 5 | |
c) Movement of pier? | Yes | Bad | Some Qty | 5 | |
d) Impact damage? | Yes | Bad | Some Qty | 5 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Bad | Some Qty | 5 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Bad | Some Qty | 5 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
Pier-39 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Bad | Some Qty | 5 | |
b) Damage to foundations? | Yes | Bad | Some Qty | 5 | |
c) Movement of pier? | Yes | Bad | Some Qty | 5 | |
d) Impact damage? | Yes | Bad | Some Qty | 5 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Bad | Much Qty | 6 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Bad | Some Qty | 5 | |
Pier-40 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Not So Bad | Much Qty | 3 | |
b) Damage to foundations? | Yes | Not So Bad | Not Much Qty | 1 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-41 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Not So Bad | Much Qty | 3 | |
b) Damage to foundations? | Yes | Not So Bad | Some Qty | 2 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-42 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Not So Bad | Some Qty | 2 | |
b) Damage to foundations? | Yes | Not So Bad | Some Qty | 2 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-43 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Damage to foundations? | Yes | Not So Bad | Not Much Qty | 1 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
Pier-44 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | Yes | Not So Bad | Not Much Qty | 1 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
Pier-45 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
Pier-46 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Damage to foundations? | Yes | Not So Bad | Not Much Qty | 1 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
Pier-47 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Damage to foundations? | Yes | Not So Bad | Not Much Qty | 1 | |
c) Movement of pier? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | Yes | Not So Bad | Not Much Qty | 1 | |
d) Poor concrete? | Yes | Not So Bad | Not Much Qty | 1 | |
Pier-48 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-49 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-50 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-51 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-52 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-53 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-54 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-55 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
Pier-56 | |||||
TYPE - CONCRETE PIERS | |||||
a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
b) Damage to foundations? | NO Problem | -- | -- | 0 | |
c) Movement of pier? | NO Problem | -- | -- | 0 | |
d) Impact damage? | NO Problem | -- | -- | 0 | |
e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
CONCRETE PIERS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 |
End of Report
