on Chainage 1.150 of road unknown
In District Pithoragarh Under CD Askote Division
Critical Report on Bridge Condition
Form Filled By Jagat Singh Bora [89003567]
Inspection Team

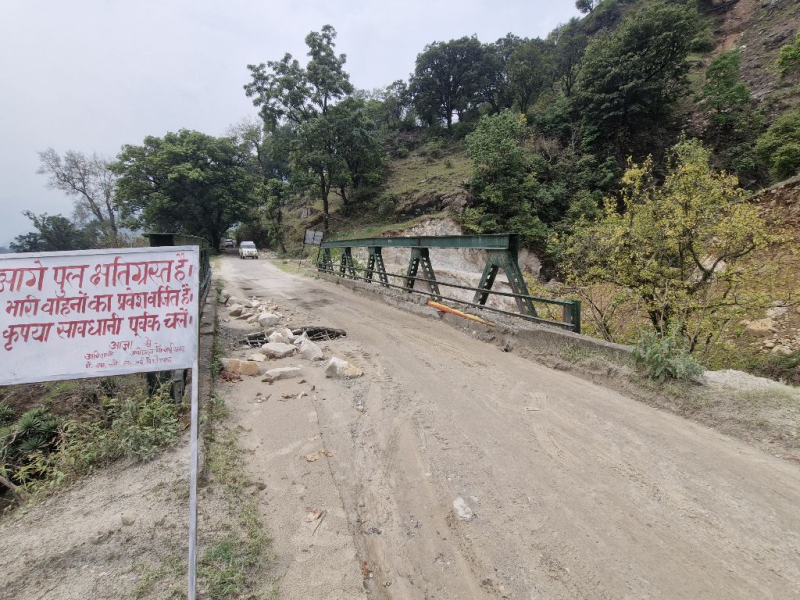

"Deck slab damege of bridge . Temprary Diversion constructed by PMGSY Pithoragrh. Diversion washout due to heavy rain last night. PMGSY Pithoragrh repair Diversion today for traffic. The Road under construction for upgradation by Irrgation Div.PMGSY Pithoragrh. "
(Jagat Singh Bora)
Assistant Engineer Civil
on May 01, 2025
Detail Report
# | Parameter | Problem ? | How Bad? | How Much? | |
---|---|---|---|---|---|
1 | ROAD APPROCHES AND DECK Component Weightage 10 | ||||
A- ROAD SURFACE NEAR BRIDGE | |||||
a) Bumpy road surface near bridge? | Not Applicable | -- | -- | -- | |
B- DRAINAGE | |||||
a) Badly built road drainage near bridge? | Not Applicable | -- | -- | -- | |
b) Blocked or damaged road drains? | Yes | Bad | Much Qty | 6 | |
c) Water on the deck? | Yes | Bad | Much Qty | 6 | |
d) Blocked or damaged deck drains? | Yes | Bad | Some Qty | 5 | |
C- WEARING COAT | |||||
CONCRETE WEARING COURSE | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | Yes | Bad | Much Qty | 6 | |
c) Reinforcement exposed? | Yes | Very Bad | Much Qty | 9 | |
d) Poor concrete? | Not Applicable | -- | -- | -- | |
e) Wear of surface due to small stones? | Not Applicable | -- | -- | -- | |
D- KERBS & FOOTPATHS | |||||
a) Loose railing fixtures? | Not Applicable | -- | -- | -- | |
a) Damaged or loose kerbs? | Yes | Very Bad | Some Qty | 8 | |
2 | PARAPETS, RAILINGS AND CRASH BARRIERS Component Weightage 10 | ||||
a) Impact damaged? | Yes | Bad | Much Qty | 6 | |
b) Loose or damaged fixings? | Not Applicable | -- | -- | -- | |
c) Loose base of posts? | Not Applicable | -- | -- | -- | |
d) Damaged coatirig or paint on steel surface? | Yes | Not So Bad | Some Qty | 2 | |
e) Corrosion on steel surface? | NO Problem | -- | -- | 0 | |
f) Cracking on Masonary Parapets? | Not Applicable | -- | -- | -- | |
g) Movement or bending of parapet? | Not Applicable | -- | -- | -- | |
h) Poor pointing/ Plaster on parapet? | Not Applicable | -- | -- | -- | |
i) Deterioration of bricks or stones? | NO Problem | -- | -- | 0 | |
3 | EXPANSION JOINT AT ABUTMENTS & PIERS Component Weightage 10 | ||||
a) Damage to concrete of deck end or dirt wall near joint? | Yes | Not So Bad | Not Much Qty | 1 | |
b) Debris or vegetation in joint? | NO Problem | -- | -- | 0 | |
c) Loose or damaged fixtures? | NO Problem | -- | -- | 0 | |
d) Damage or corrosion to metal parts? | NO Problem | -- | -- | 0 | |
e) Damage to rubber waterseals? | NO Problem | -- | -- | 0 | |
4 | RIVER Component Weightage 10 | ||||
A- BLOCKAGES IN WATERWAY | |||||
a) Debris against piers or abutments? | Yes | Not So Bad | Some Qty | 2 | |
b) Remains of old bridge under or upstream of the bridge? | Not Applicable | -- | -- | -- | |
c) Fencing or buildings under bridge? | Not Applicable | -- | -- | -- | |
d) Trees or bushes.growing under bridge? | Yes | Not So Bad | Some Qty | 2 | |
B- CHANGE IN RIVER COURSE | |||||
a) River changing path upstream of bridge? | NO Problem | -- | -- | 0 | |
b) New islands forming upstream of bridge? | NO Problem | -- | -- | 0 | |
C- RIVER TRAINING WORKS | |||||
a) River attack beyond the upstream end of river training works? | Yes | Not So Bad | Some Qty | 2 | |
b) Damage to walls? | Yes | Bad | Not Much Qty | 4 | |
c) Loss of pitching? | NO Problem | -- | -- | 0 | |
d) Damage to crates, timber, fencing, etc.? | NO Problem | -- | -- | 0 | |
e) Damage to trees? | NO Problem | -- | -- | 0 | |
5 | SUPERSTRUCTURE Component Weightage 60 | ||||
STEEL TRUSSES | |||||
General | |||||
a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
STEEL TRUSSES | |||||
a) Deterioration of paint or galvanising? | Yes | Not So Bad | Some Qty | 2 | |
b) Corrosion? | NO Problem | -- | -- | 0 | |
c) Bends in members? | NO Problem | -- | -- | 0 | |
d) Bent or damaged joints? | NO Problem | -- | -- | 0 | |
e) Bent or damaged bracing? | NO Problem | -- | -- | 0 | |
f) Loose bolts or rivets? | NO Problem | -- | -- | 0 | |
g) Cracking of steel members? | NO Problem | -- | -- | 0 | |
STEEL UNDERSIDE OF DECK | |||||
a) Deterioration of paint or galvanising? | NO Problem | -- | -- | 0 | |
b) Corrosion? | NO Problem | -- | -- | 0 | |
c) Bends in stringers or plates? | NO Problem | -- | -- | 0 | |
d) Loose bolts or rivets? | NO Problem | -- | -- | 0 | |
e) Cracking? | NO Problem | -- | -- | 0 | |
6 | BEARINGS Component Weightage 10 | ||||
METAL BEARINGS | |||||
a) Debris or vegetation around bearings? | NO Problem | -- | -- | 0 | |
b) Bad drainage? | NO Problem | -- | -- | 0 | |
c) Not enough room for the bridge span to move? | NO Problem | -- | -- | 0 | |
d) Bearing not seated properly? | NO Problem | -- | -- | 0 | |
e) Bridge span not seated properly on bearing? | NO Problem | -- | -- | 0 | |
f) Damaged bedding mortar? | NO Problem | -- | -- | 0 | |
g) Damaged or loose earthquake restraints? | NO Problem | -- | -- | 0 | |
METAL BEARINGS | |||||
a) Parts not properly seated? | NO Problem | -- | -- | 0 | |
b) Parts not free to move? | NO Problem | -- | -- | 0 | |
c) Problem with the lubrication system? | NO Problem | -- | -- | 0 | |
d) Sliding surfaces damaged? | NO Problem | -- | -- | 0 | |
e) Cracks or bends in metal parts/ Bearing? | NO Problem | -- | -- | 0 | |
f) Corrosion of metal parts? | NO Problem | -- | -- | 0 | |
7 | Right Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10 | ||||
A- GENERAL | |||||
a) Erosion or scour at abutment? | Yes | Not So Bad | Some Qty | 2 | |
b) Damage to foundation? | NO Problem | -- | -- | 0 | |
c) Movement of abutment? | NO Problem | -- | -- | 0 | |
d) Debris against abutment? | NO Problem | -- | -- | 0 | |
e) Vegetation growing on-or in abutment? | Yes | Not So Bad | Some Qty | 2 | |
f) Scour near to retaining walls? | Yes | Not So Bad | Not Much Qty | 1 | |
g) Movement of retaining walls? | NO Problem | -- | -- | 0 | |
h) Water leaking down through the expansion joint? | NO Problem | -- | -- | 0 | |
B- DRAINAGE SYSTEM | |||||
a) Not enough weepholes? | NO Problem | -- | -- | 0 | |
b) Weepholes not working? | NO Problem | -- | -- | 0 | |
c) Water leaking through the abutment? | NO Problem | -- | -- | 0 | |
C- CONCRETE WALLS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
D- MASONRY WALLS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Bulging? | NO Problem | -- | -- | 0 | |
c) Poor pointing? | NO Problem | -- | -- | 0 | |
d) Deterioration of bricks or stones? | NO Problem | -- | -- | 0 | |
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT | |||||
a) Scour at base of slopes? | NO Problem | -- | -- | 0 | |
b) Slippage of fill? | NO Problem | -- | -- | 0 | |
c) Erosion of fill? | NO Problem | -- | -- | 0 | |
d) Cracking of road or embankment edge? | Not Applicable | -- | -- | -- | |
e) Piping failure of fill? | Not Applicable | -- | -- | -- | |
8 | Left Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10 | ||||
A- GENERAL | |||||
a) Erosion or scour at abutment? | NO Problem | -- | -- | 0 | |
b) Damage to foundation? | NO Problem | -- | -- | 0 | |
c) Movement of abutment? | NO Problem | -- | -- | 0 | |
d) Debris against abutment? | NO Problem | -- | -- | 0 | |
e) Vegetation growing on-or in abutment? | NO Problem | -- | -- | 0 | |
f) Scour near to retaining walls? | NO Problem | -- | -- | 0 | |
g) Movement of retaining walls? | NO Problem | -- | -- | 0 | |
h) Water leaking down through the expansion joint? | NO Problem | -- | -- | 0 | |
B- DRAINAGE SYSTEM | |||||
a) Not enough weepholes? | NO Problem | -- | -- | 0 | |
b) Weepholes not working? | NO Problem | -- | -- | 0 | |
c) Water leaking through the abutment? | NO Problem | -- | -- | 0 | |
C- CONCRETE WALLS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Spalling? | NO Problem | -- | -- | 0 | |
c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
d) Poor concrete? | NO Problem | -- | -- | 0 | |
D- MASONRY WALLS | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Bulging? | NO Problem | -- | -- | 0 | |
c) Poor pointing? | NO Problem | -- | -- | 0 | |
d) Deterioration of bricks or stones? | NO Problem | -- | -- | 0 | |
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT | |||||
a) Scour at base of slopes? | NO Problem | -- | -- | 0 | |
b) Slippage of fill? | NO Problem | -- | -- | 0 | |
c) Erosion of fill? | NO Problem | -- | -- | 0 | |
d) Cracking of road or embankment edge? | NO Problem | -- | -- | 0 | |
e) Piping failure of fill? | NO Problem | -- | -- | 0 | |
9 | Embankments Component Weightage 10 | ||||
A- STONE PITCHING SLOPE PROTECTION | |||||
a) Cracking? | NO Problem | -- | -- | 0 | |
b) Poor pointing? | NO Problem | -- | -- | 0 | |
c) Scour or erosion at edge? | NO Problem | -- | -- | 0 | |
d) Pieces broken off? | NO Problem | -- | -- | 0 | |
e) Piping failure of fill? | NO Problem | -- | -- | 0 | |
B- SLOPE PROTECTION WITH CRATES | |||||
a) Not much movement of crates? | NO Problem | -- | -- | 0 | |
b) Damage to crates or ties? | NO Problem | -- | -- | 0 | |
C- PITCHING SLOPE PROTECTION WITH CONCRETE BLOCKS | |||||
a) Slope getting washed out? | NO Problem | -- | -- | 0 | |
b) Settlement? | NO Problem | -- | -- | 0 | |
10 | RIVER BED Component Weightage 10 | ||||
A- BED PROTECTION AND APRONS | |||||
a) Large holes in the river bed? | NO Problem | -- | -- | 0 | |
b) Loss of material | NO Problem | -- | -- | 0 | |
c) Crates broken away from pier or abutment? | NO Problem | -- | -- | 0 | |
d) Damage to wires or ties? | NO Problem | -- | -- | 0 | |
B- STONE PITCHING OR CONCRETE BED PROTECTION AND APRONS | |||||
a) Scour at edge? | NO Problem | -- | -- | 0 | |
b) Cracking? | NO Problem | -- | -- | 0 | |
c) Spalling or stones missing? | NO Problem | -- | -- | 0 | |
d) Erosion of surface? | NO Problem | -- | -- | 0 | |
e) Corrosion of reinforcement? | Yes | Not So Bad | Much Qty | 3 |
