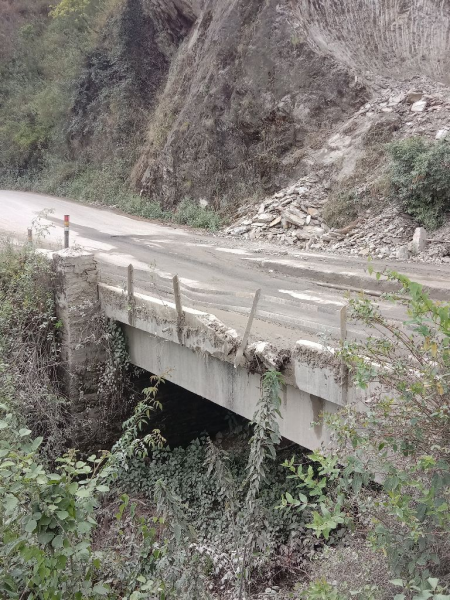

ID :1466 NEAR KASYANI

on Chainage 63.150 of Starting from its junction with NH-58 near Meerut in the state of Uttar Pradesh and connecting Bijnor Najibabad Kotdwara Pauri and terminating at junction with NH -58 near Srinagar National Highway

In District Pauri Under NH Dhumakot Division


Critical Report on Bridge Condition

Form Filled By Ashish Sani [22330313m67]

Inspection Team

"Near Kasyani Bridge is Satisfactory."

(Ashish Sani)

Junior Engineer Civil

on Jun 05, 2024

Detail Report

# Parameter Problem ? How Bad? How Much?
1 ROAD APPROCHES AND DECK Component Weightage 10
A- ROAD SURFACE NEAR BRIDGE
a) Bumpy road surface near bridge? NO Problem -- -- 0
B- DRAINAGE
a) Badly built road drainage near bridge? NO Problem -- -- 0
b) Blocked or damaged road drains? NO Problem -- -- 0
c) Water on the deck? NO Problem -- -- 0
d) Blocked or damaged deck drains? NO Problem -- -- 0
C- WEARING COAT
BITUMEN WEARING COURSE
a) Surface breaking up or lifting off? NO Problem -- -- 0
b) Cracking above joints ? NO Problem -- -- 0
D- KERBS & FOOTPATHS
a) Loose railing fixtures? Not Applicable -- -- --
a) Damaged or loose kerbs? Not Applicable -- -- --
2 PARAPETS, RAILINGS AND CRASH BARRIERS Component Weightage 10
a) Impact damaged? Yes Bad Some Qty 5
b) Loose or damaged fixings? Yes Bad Not Much Qty 4
c) Loose base of posts? Yes Bad Some Qty 5
d) Damaged coatirig or paint on steel surface? Yes Bad Much Qty 6
e) Corrosion on steel surface? Yes Not So Bad Some Qty 2
f) Cracking on Masonary Parapets? Yes Bad Some Qty 5
g) Movement or bending of parapet? Yes Not So Bad Some Qty 2
h) Poor pointing/ Plaster on parapet? Yes Not So Bad Not Much Qty 1
i) Deterioration of bricks or stones? Yes Not So Bad Some Qty 2
3 EXPANSION JOINT AT ABUTMENTS & PIERS Component Weightage 10
a) Damage to concrete of deck end or dirt wall near joint? NO Problem -- -- 0
b) Debris or vegetation in joint? NO Problem -- -- 0
c) Loose or damaged fixtures? NO Problem -- -- 0
d) Damage or corrosion to metal parts? NO Problem -- -- 0
e) Damage to rubber waterseals? NO Problem -- -- 0
4 RIVER Component Weightage 10
A- BLOCKAGES IN WATERWAY
a) Debris against piers or abutments? Yes Bad Not Much Qty 4
b) Remains of old bridge under or upstream of the bridge? NO Problem -- -- 0
c) Fencing or buildings under bridge? NO Problem -- -- 0
d) Trees or bushes.growing under bridge? Yes Not So Bad Some Qty 2
B- CHANGE IN RIVER COURSE
a) River changing path upstream of bridge? NO Problem -- -- 0
b) New islands forming upstream of bridge? NO Problem -- -- 0
C- RIVER TRAINING WORKS
a) River attack beyond the upstream end of river training works? NO Problem -- -- 0
b) Damage to walls? NO Problem -- -- 0
c) Loss of pitching? NO Problem -- -- 0
d) Damage to crates, timber, fencing, etc.? NO Problem -- -- 0
e) Damage to trees? NO Problem -- -- 0
5 SUPERSTRUCTURE Component Weightage 60
CONCRETE
General
a) Impact damage to girders, trusses or bracings? NO Problem -- -- 0
b) Debris or vegetation on beams, girders, trusses bracings or joints? NO Problem -- -- 0
c) Water coming through the deck? NO Problem -- -- 0
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? NO Problem -- -- 0
e) Not enough vertical & horizontal clearances? NO Problem -- -- 0
CONCRETE BEAMS
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Corrosion of reinforcement? NO Problem -- -- 0
d) Poor concrete? NO Problem -- -- 0
CONCRETE UNDERSIDE OF DECK
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Reinforcement corrosion? NO Problem -- -- 0
d) Poor concrete? NO Problem -- -- 0
e) Less cover to reinforcement? NO Problem -- -- 0
6 BEARINGS Component Weightage 10
NOT APPLICABLE
7 Right Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10
A- GENERAL
a) Erosion or scour at abutment? NO Problem -- -- 0
b) Damage to foundation? NO Problem -- -- 0
c) Movement of abutment? NO Problem -- -- 0
d) Debris against abutment? Yes Bad Some Qty 5
e) Vegetation growing on-or in abutment? Yes Bad Not Much Qty 4
f) Scour near to retaining walls? NO Problem -- -- 0
g) Movement of retaining walls? NO Problem -- -- 0
h) Water leaking down through the expansion joint? NO Problem -- -- 0
B- DRAINAGE SYSTEM
a) Not enough weepholes? NO Problem -- -- 0
b) Weepholes not working? NO Problem -- -- 0
c) Water leaking through the abutment? NO Problem -- -- 0
C- CONCRETE WALLS
a) Cracking? Not Applicable -- -- --
b) Spalling? Not Applicable -- -- --
c) Corrosion of reinforcement? Not Applicable -- -- --
d) Poor concrete? Not Applicable -- -- --
D- MASONRY WALLS
a) Cracking? NO Problem -- -- 0
b) Bulging? NO Problem -- -- 0
c) Poor pointing? NO Problem -- -- 0
d) Deterioration of bricks or stones? NO Problem -- -- 0
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT
a) Scour at base of slopes? Not Applicable -- -- --
b) Slippage of fill? Not Applicable -- -- --
c) Erosion of fill? Not Applicable -- -- --
d) Cracking of road or embankment edge? Not Applicable -- -- --
e) Piping failure of fill? Not Applicable -- -- --
8 Left Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10
A- GENERAL
a) Erosion or scour at abutment? NO Problem -- -- 0
b) Damage to foundation? NO Problem -- -- 0
c) Movement of abutment? NO Problem -- -- 0
d) Debris against abutment? Yes Bad Not Much Qty 4
e) Vegetation growing on-or in abutment? Yes Bad Not Much Qty 4
f) Scour near to retaining walls? NO Problem -- -- 0
g) Movement of retaining walls? NO Problem -- -- 0
h) Water leaking down through the expansion joint? NO Problem -- -- 0
B- DRAINAGE SYSTEM
a) Not enough weepholes? NO Problem -- -- 0
b) Weepholes not working? NO Problem -- -- 0
c) Water leaking through the abutment? NO Problem -- -- 0
C- CONCRETE WALLS
a) Cracking? Not Applicable -- -- --
b) Spalling? Not Applicable -- -- --
c) Corrosion of reinforcement? Not Applicable -- -- --
d) Poor concrete? Not Applicable -- -- --
D- MASONRY WALLS
a) Cracking? NO Problem -- -- 0
b) Bulging? NO Problem -- -- 0
c) Poor pointing? NO Problem -- -- 0
d) Deterioration of bricks or stones? NO Problem -- -- 0
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT
a) Scour at base of slopes? Not Applicable -- -- --
b) Slippage of fill? Not Applicable -- -- --
c) Erosion of fill? Not Applicable -- -- --
d) Cracking of road or embankment edge? Not Applicable -- -- --
e) Piping failure of fill? Not Applicable -- -- --
9 Embankments Component Weightage 10
A- STONE PITCHING SLOPE PROTECTION
a) Cracking? Not Applicable -- -- --
b) Poor pointing? Not Applicable -- -- --
c) Scour or erosion at edge? Not Applicable -- -- --
d) Pieces broken off? Not Applicable -- -- --
e) Piping failure of fill? Not Applicable -- -- --
B- SLOPE PROTECTION WITH CRATES
a) Not much movement of crates? Not Applicable -- -- --
b) Damage to crates or ties? Not Applicable -- -- --
C- PITCHING SLOPE PROTECTION WITH CONCRETE BLOCKS
a) Slope getting washed out? Not Applicable -- -- --
b) Settlement? Not Applicable -- -- --
10 RIVER BED Component Weightage 10
A- BED PROTECTION AND APRONS
a) Large holes in the river bed? Not Applicable -- -- --
b) Loss of material Not Applicable -- -- --
c) Crates broken away from pier or abutment? Not Applicable -- -- --
d) Damage to wires or ties? Not Applicable -- -- --
B- STONE PITCHING OR CONCRETE BED PROTECTION AND APRONS
a) Scour at edge? Not Applicable -- -- --
b) Cracking? Not Applicable -- -- --
c) Spalling or stones missing? Not Applicable -- -- --
d) Erosion of surface? Not Applicable -- -- --
e) Corrosion of reinforcement? Not Applicable -- -- --

End of Report
