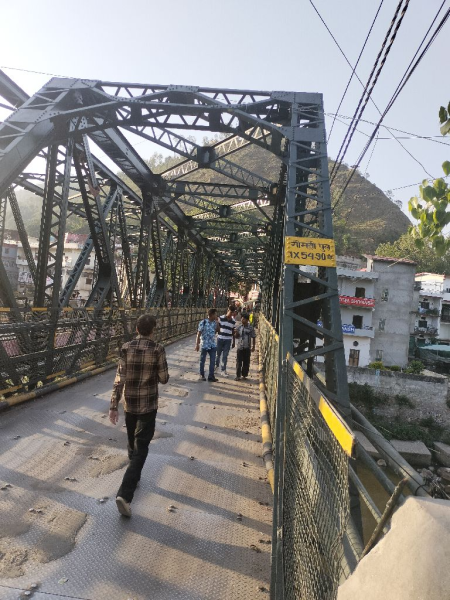

ID :1504 Gomati Bridge

on Chainage 132.355 of Gangolihat, Berinag, Chaukori, Kanda, Bagheshwar, Takula and terminating at its junction with new NH No. 109 near Almora national highway

In District Bageshwar Under NH Ranikhet Division

Critical Report on Bridge Condition

06 Jun 2024 7.15% 12 Jan 2024 4.98% 18 Dec 2023 3.84% 30 Nov 2023 8.94%

Form Filled By Pooran Puri [360023342]

# Component Rating %
1 10 ROAD APPROCHES AND DECK 11.11 % 0.74 %
2 10 PARAPETS, RAILINGS AND CRASH BARRIERS 4.94 % 0.33 %
3 10 EXPANSION JOINT AT ABUTMENTS & PIERS 11.11 % 0.74 %
4 10 RIVER 4.04 % 0.27 %
5 10 BEARINGS 5.98 % 0.40 %
6 10 Right Side ABUTMENT, WING WALLS & RETAINING WALLS 6.94 % 0.46 %
7 10 Left Side ABUTMENT, WING WALLS & RETAINING WALLS 5.56 % 0.37 %
8 10 Embankments 3.70 % 0.25 %
9 10 RIVER BED 4.94 % 0.33 %
10 60 SUPERSTRUCTURE 8.15 % 3.26 %
150 Overall 7.15%

Inspection Team

"पुल के Strengthening and upgradation की आवश्यकता है।"

(Pooran Puri)

Assistant Engineer Civil

on Jun 06, 2024

Detail Report

# Parameter Problem ? How Bad? How Much?
1 ROAD APPROCHES AND DECK Component Weightage 10
A- ROAD SURFACE NEAR BRIDGE
a) Bumpy road surface near bridge? Yes Not So Bad Not Much Qty 1
B- DRAINAGE
a) Badly built road drainage near bridge? Yes Not So Bad Not Much Qty 1
b) Blocked or damaged road drains? Yes Not So Bad Not Much Qty 1
c) Water on the deck? Yes Not So Bad Not Much Qty 1
d) Blocked or damaged deck drains? NO Problem -- -- 0
C- WEARING COAT
STEEL WEARING COURSE
a) Fixings loose or damaged? Yes Not So Bad Not Much Qty 1
b) Bonds in panels? Yes Not So Bad Not Much Qty 1
c) Corrosion? Yes Not So Bad Not Much Qty 1
D- KERBS & FOOTPATHS
a) Loose railing fixtures? Yes Not So Bad Not Much Qty 1
a) Damaged or loose kerbs? Yes Not So Bad Some Qty 2
2 PARAPETS, RAILINGS AND CRASH BARRIERS Component Weightage 10
a) Impact damaged? Yes Not So Bad Not Much Qty 1
b) Loose or damaged fixings? Yes Not So Bad Not Much Qty 1
c) Loose base of posts? NO Problem -- -- 0
d) Damaged coatirig or paint on steel surface? Yes Not So Bad Not Much Qty 1
e) Corrosion on steel surface? NO Problem -- -- 0
f) Cracking on Masonary Parapets? NO Problem -- -- 0
g) Movement or bending of parapet? Yes Not So Bad Not Much Qty 1
h) Poor pointing/ Plaster on parapet? NO Problem -- -- 0
i) Deterioration of bricks or stones? NO Problem -- -- 0
3 EXPANSION JOINT AT ABUTMENTS & PIERS Component Weightage 10
a) Damage to concrete of deck end or dirt wall near joint? Yes Not So Bad Not Much Qty 1
b) Debris or vegetation in joint? Yes Not So Bad Not Much Qty 1
c) Loose or damaged fixtures? Yes Not So Bad Not Much Qty 1
d) Damage or corrosion to metal parts? Yes Not So Bad Not Much Qty 1
e) Damage to rubber waterseals? Yes Not So Bad Not Much Qty 1
4 RIVER Component Weightage 10
A- BLOCKAGES IN WATERWAY
a) Debris against piers or abutments? NO Problem -- -- 0
b) Remains of old bridge under or upstream of the bridge? NO Problem -- -- 0
c) Fencing or buildings under bridge? NO Problem -- -- 0
d) Trees or bushes.growing under bridge? Yes Not So Bad Not Much Qty 1
B- CHANGE IN RIVER COURSE
a) River changing path upstream of bridge? NO Problem -- -- 0
b) New islands forming upstream of bridge? NO Problem -- -- 0
C- RIVER TRAINING WORKS
a) River attack beyond the upstream end of river training works? Yes Not So Bad Not Much Qty 1
b) Damage to walls? Yes Not So Bad Not Much Qty 1
c) Loss of pitching? NO Problem -- -- 0
d) Damage to crates, timber, fencing, etc.? Yes Not So Bad Not Much Qty 1
e) Damage to trees? NO Problem -- -- 0
5 SUPERSTRUCTURE Component Weightage 60
STEEL GIRDERS
General
a) Impact damage to girders, trusses or bracings? Yes Not So Bad Not Much Qty 1
b) Debris or vegetation on beams, girders, trusses bracings or joints? Yes Not So Bad Not Much Qty 1
c) Water coming through the deck? Yes Not So Bad Not Much Qty 1
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? Yes Not So Bad Not Much Qty 1
e) Not enough vertical & horizontal clearances? NO Problem -- -- 0
STEEL GIRDERS AND BRACINGS
a) Deterioration of paint or galvanising NO Problem -- -- 0
b) Corrosion? Yes Not So Bad Not Much Qty 1
c) Bends in webs, flanges, stiffeners or bracings? NO Problem -- -- 0
d) Loose bolts or rivets? Yes Not So Bad Not Much Qty 1
e) Cracking? NO Problem -- -- 0
STEEL UNDERSIDE OF DECK
a) Deterioration of paint or galvanising? Yes Not So Bad Not Much Qty 1
b) Corrosion? Yes Not So Bad Not Much Qty 1
c) Bends in stringers or plates? Yes Not So Bad Not Much Qty 1
d) Loose bolts or rivets? Yes Not So Bad Not Much Qty 1
e) Cracking? Yes Not So Bad Not Much Qty 1
6 BEARINGS Component Weightage 10
METAL BEARINGS
a) Debris or vegetation around bearings? Yes Not So Bad Not Much Qty 1
b) Bad drainage? Yes Not So Bad Not Much Qty 1
c) Not enough room for the bridge span to move? Yes Not So Bad Not Much Qty 1
d) Bearing not seated properly? NO Problem -- -- 0
e) Bridge span not seated properly on bearing? NO Problem -- -- 0
f) Damaged bedding mortar? NO Problem -- -- 0
g) Damaged or loose earthquake restraints? Yes Not So Bad Not Much Qty 1
METAL BEARINGS
a) Parts not properly seated? NO Problem -- -- 0
b) Parts not free to move? NO Problem -- -- 0
c) Problem with the lubrication system? Yes Not So Bad Not Much Qty 1
d) Sliding surfaces damaged? Yes Not So Bad Not Much Qty 1
e) Cracks or bends in metal parts/ Bearing? NO Problem -- -- 0
f) Corrosion of metal parts? Yes Not So Bad Not Much Qty 1
7 Right Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10
A- GENERAL
a) Erosion or scour at abutment? Yes Not So Bad Not Much Qty 1
b) Damage to foundation? Yes Not So Bad Not Much Qty 1
c) Movement of abutment? Yes Not So Bad Not Much Qty 1
d) Debris against abutment? Yes Not So Bad Not Much Qty 1
e) Vegetation growing on-or in abutment? Yes Not So Bad Not Much Qty 1
f) Scour near to retaining walls? NO Problem -- -- 0
g) Movement of retaining walls? NO Problem -- -- 0
h) Water leaking down through the expansion joint? Yes Not So Bad Not Much Qty 1
B- DRAINAGE SYSTEM
a) Not enough weepholes? Yes Not So Bad Not Much Qty 1
b) Weepholes not working? Yes Not So Bad Not Much Qty 1
c) Water leaking through the abutment? Yes Not So Bad Not Much Qty 1
C- CONCRETE WALLS
a) Cracking? NO Problem -- -- 0
b) Spalling? Yes Not So Bad Not Much Qty 1
c) Corrosion of reinforcement? NO Problem -- -- 0
d) Poor concrete? Yes Not So Bad Some Qty 2
D- MASONRY WALLS
a) Cracking? NO Problem -- -- 0
b) Bulging? NO Problem -- -- 0
c) Poor pointing? Yes Not So Bad Not Much Qty 1
d) Deterioration of bricks or stones? NO Problem -- -- 0
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT
a) Scour at base of slopes? Yes Not So Bad Not Much Qty 1
b) Slippage of fill? NO Problem -- -- 0
c) Erosion of fill? NO Problem -- -- 0
d) Cracking of road or embankment edge? Yes Not So Bad Not Much Qty 1
e) Piping failure of fill? NO Problem -- -- 0
8 Left Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10
A- GENERAL
a) Erosion or scour at abutment? NO Problem -- -- 0
b) Damage to foundation? Yes Not So Bad Not Much Qty 1
c) Movement of abutment? NO Problem -- -- 0
d) Debris against abutment? Yes Not So Bad Not Much Qty 1
e) Vegetation growing on-or in abutment? Yes Not So Bad Not Much Qty 1
f) Scour near to retaining walls? NO Problem -- -- 0
g) Movement of retaining walls? Yes Not So Bad Not Much Qty 1
h) Water leaking down through the expansion joint? NO Problem -- -- 0
B- DRAINAGE SYSTEM
a) Not enough weepholes? Yes Not So Bad Not Much Qty 1
b) Weepholes not working? Yes Not So Bad Not Much Qty 1
c) Water leaking through the abutment? NO Problem -- -- 0
C- CONCRETE WALLS
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Corrosion of reinforcement? Yes Not So Bad Not Much Qty 1
d) Poor concrete? NO Problem -- -- 0
D- MASONRY WALLS
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Bulging? NO Problem -- -- 0
c) Poor pointing? Yes Not So Bad Not Much Qty 1
d) Deterioration of bricks or stones? NO Problem -- -- 0
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT
a) Scour at base of slopes? Yes Not So Bad Not Much Qty 1
b) Slippage of fill? Yes Not So Bad Not Much Qty 1
c) Erosion of fill? NO Problem -- -- 0
d) Cracking of road or embankment edge? NO Problem -- -- 0
e) Piping failure of fill? Yes Not So Bad Not Much Qty 1
9 Embankments Component Weightage 10
A- STONE PITCHING SLOPE PROTECTION
a) Cracking? NO Problem -- -- 0
b) Poor pointing? NO Problem -- -- 0
c) Scour or erosion at edge? NO Problem -- -- 0
d) Pieces broken off? NO Problem -- -- 0
e) Piping failure of fill? NO Problem -- -- 0
B- SLOPE PROTECTION WITH CRATES
a) Not much movement of crates? Yes Not So Bad Not Much Qty 1
b) Damage to crates or ties? Yes Not So Bad Not Much Qty 1
C- PITCHING SLOPE PROTECTION WITH CONCRETE BLOCKS
a) Slope getting washed out? NO Problem -- -- 0
b) Settlement? Yes Not So Bad Not Much Qty 1
10 RIVER BED Component Weightage 10
A- BED PROTECTION AND APRONS
a) Large holes in the river bed? NO Problem -- -- 0
b) Loss of material Yes Not So Bad Not Much Qty 1
c) Crates broken away from pier or abutment? NO Problem -- -- 0
d) Damage to wires or ties? NO Problem -- -- 0
B- STONE PITCHING OR CONCRETE BED PROTECTION AND APRONS
a) Scour at edge? NO Problem -- -- 0
b) Cracking? Yes Not So Bad Not Much Qty 1
c) Spalling or stones missing? NO Problem -- -- 0
d) Erosion of surface? Yes Not So Bad Not Much Qty 1
e) Corrosion of reinforcement? Yes Not So Bad Not Much Qty 1

End of Report
