on Chainage 0.077 of road unknown
In District Pauri Under CD Srinagar Division
Critical Report on Bridge Condition
Form Filled By Harsh Bardhan [42008193]
Inspection Team

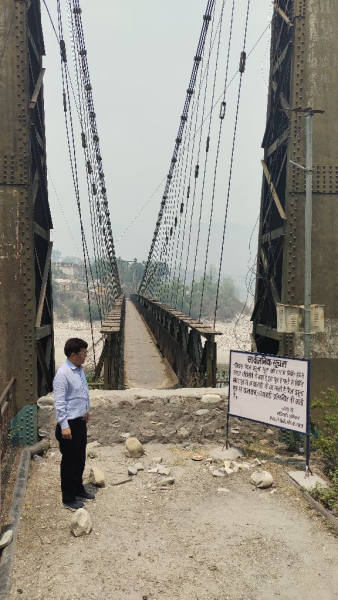

"Bridge is ok but due to in downstream side .already motor bridge with footpath exist so this bridge has been closed "
(Prahlad Singh Brijwal)
Superintending Engineer Civil
on May 04, 2024

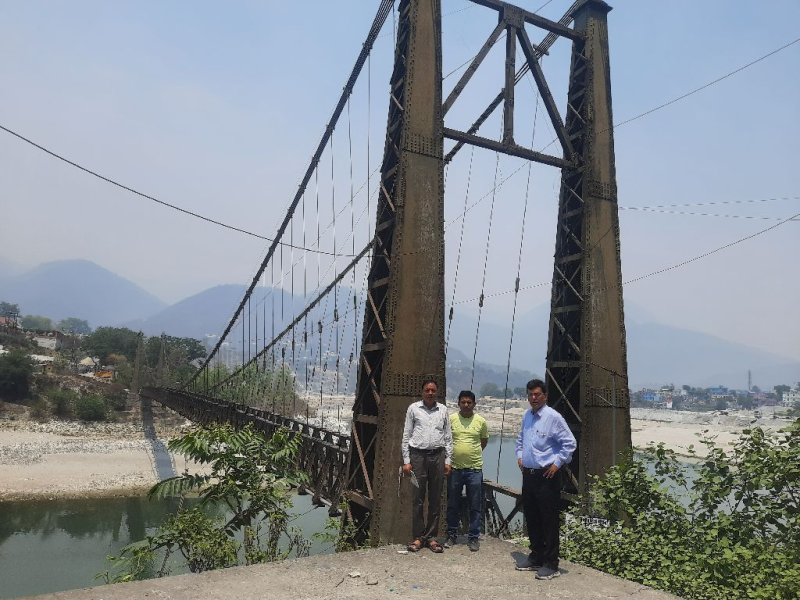

"Bridge inspection has been done with se sir,,bridge is closed dueto another motor bridge with footpath has been constructed in downstream "
(Harsh Bardhan)
Assistant Engineer Civil
on May 04, 2024
Detail Report
| # | Parameter | Problem ? | How Bad? | How Much? | |
|---|---|---|---|---|---|
| 1 | ROAD APPROCHES AND DECK Component Weightage 10 | ||||
| A- ROAD SURFACE NEAR BRIDGE | |||||
| a) Bumpy road surface near bridge? | NO Problem | -- | -- | 0 | |
| B- DRAINAGE | |||||
| a) Badly built road drainage near bridge? | NO Problem | -- | -- | 0 | |
| b) Blocked or damaged road drains? | NO Problem | -- | -- | 0 | |
| c) Water on the deck? | NO Problem | -- | -- | 0 | |
| d) Blocked or damaged deck drains? | NO Problem | -- | -- | 0 | |
| C- WEARING COAT | |||||
| STEEL WEARING COURSE | |||||
| a) Fixings loose or damaged? | NO Problem | -- | -- | 0 | |
| b) Bonds in panels? | NO Problem | -- | -- | 0 | |
| c) Corrosion? | Yes | Not So Bad | Not Much Qty | 1 | |
| D- KERBS & FOOTPATHS | |||||
| a) Loose railing fixtures? | NO Problem | -- | -- | 0 | |
| a) Damaged or loose kerbs? | NO Problem | -- | -- | 0 | |
| 2 | PARAPETS, RAILINGS AND CRASH BARRIERS Component Weightage 10 | ||||
| a) Impact damaged? | NO Problem | -- | -- | 0 | |
| b) Loose or damaged fixings? | NO Problem | -- | -- | 0 | |
| c) Loose base of posts? | NO Problem | -- | -- | 0 | |
| d) Damaged coatirig or paint on steel surface? | Yes | Bad | Some Qty | 5 | |
| e) Corrosion on steel surface? | Yes | Bad | Not Much Qty | 4 | |
| f) Cracking on Masonary Parapets? | NO Problem | -- | -- | 0 | |
| g) Movement or bending of parapet? | NO Problem | -- | -- | 0 | |
| h) Poor pointing/ Plaster on parapet? | NO Problem | -- | -- | 0 | |
| i) Deterioration of bricks or stones? | NO Problem | -- | -- | 0 | |
| 3 | EXPANSION JOINT AT ABUTMENTS & PIERS Component Weightage 10 | ||||
| a) Damage to concrete of deck end or dirt wall near joint? | NO Problem | -- | -- | 0 | |
| b) Debris or vegetation in joint? | Yes | Not So Bad | Some Qty | 2 | |
| c) Loose or damaged fixtures? | NO Problem | -- | -- | 0 | |
| d) Damage or corrosion to metal parts? | Yes | Not So Bad | Some Qty | 2 | |
| e) Damage to rubber waterseals? | Not Applicable | -- | -- | -- | |
| 4 | RIVER Component Weightage 10 | ||||
| A- BLOCKAGES IN WATERWAY | |||||
| a) Debris against piers or abutments? | NO Problem | -- | -- | 0 | |
| b) Remains of old bridge under or upstream of the bridge? | Not Applicable | -- | -- | -- | |
| c) Fencing or buildings under bridge? | Not Applicable | -- | -- | -- | |
| d) Trees or bushes.growing under bridge? | NO Problem | -- | -- | 0 | |
| B- CHANGE IN RIVER COURSE | |||||
| a) River changing path upstream of bridge? | NO Problem | -- | -- | 0 | |
| b) New islands forming upstream of bridge? | NO Problem | -- | -- | 0 | |
| C- RIVER TRAINING WORKS | |||||
| a) River attack beyond the upstream end of river training works? | Not Applicable | -- | -- | -- | |
| b) Damage to walls? | Not Applicable | -- | -- | -- | |
| c) Loss of pitching? | Not Applicable | -- | -- | -- | |
| d) Damage to crates, timber, fencing, etc.? | Not Applicable | -- | -- | -- | |
| e) Damage to trees? | Not Applicable | -- | -- | -- | |
| 5 | SUPERSTRUCTURE Component Weightage 60 | ||||
| STEEL TRUSSES | |||||
| General | |||||
| a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
| b) Debris or vegetation on beams, girders, trusses bracings or joints? | NO Problem | -- | -- | 0 | |
| c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
| d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
| e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
| STEEL TRUSSES | |||||
| a) Deterioration of paint or galvanising? | Yes | Not So Bad | Some Qty | 2 | |
| b) Corrosion? | Yes | Not So Bad | Not Much Qty | 1 | |
| c) Bends in members? | NO Problem | -- | -- | 0 | |
| d) Bent or damaged joints? | NO Problem | -- | -- | 0 | |
| e) Bent or damaged bracing? | NO Problem | -- | -- | 0 | |
| f) Loose bolts or rivets? | NO Problem | -- | -- | 0 | |
| g) Cracking of steel members? | NO Problem | -- | -- | 0 | |
| STEEL UNDERSIDE OF DECK | |||||
| a) Deterioration of paint or galvanising? | Yes | Not So Bad | Some Qty | 2 | |
| b) Corrosion? | Yes | Not So Bad | Some Qty | 2 | |
| c) Bends in stringers or plates? | NO Problem | -- | -- | 0 | |
| d) Loose bolts or rivets? | NO Problem | -- | -- | 0 | |
| e) Cracking? | NO Problem | -- | -- | 0 | |
| 6 | BEARINGS Component Weightage 10 | ||||
| NOT APPLICABLE | |||||
| 7 | Right Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10 | ||||
| A- GENERAL | |||||
| a) Erosion or scour at abutment? | NO Problem | -- | -- | 0 | |
| b) Damage to foundation? | NO Problem | -- | -- | 0 | |
| c) Movement of abutment? | NO Problem | -- | -- | 0 | |
| d) Debris against abutment? | NO Problem | -- | -- | 0 | |
| e) Vegetation growing on-or in abutment? | NO Problem | -- | -- | 0 | |
| f) Scour near to retaining walls? | NO Problem | -- | -- | 0 | |
| g) Movement of retaining walls? | NO Problem | -- | -- | 0 | |
| h) Water leaking down through the expansion joint? | NO Problem | -- | -- | 0 | |
| B- DRAINAGE SYSTEM | |||||
| a) Not enough weepholes? | NO Problem | -- | -- | 0 | |
| b) Weepholes not working? | NO Problem | -- | -- | 0 | |
| c) Water leaking through the abutment? | NO Problem | -- | -- | 0 | |
| C- CONCRETE WALLS | |||||
| a) Cracking? | NO Problem | -- | -- | 0 | |
| b) Spalling? | NO Problem | -- | -- | 0 | |
| c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
| d) Poor concrete? | NO Problem | -- | -- | 0 | |
| D- MASONRY WALLS | |||||
| a) Cracking? | NO Problem | -- | -- | 0 | |
| b) Bulging? | NO Problem | -- | -- | 0 | |
| c) Poor pointing? | NO Problem | -- | -- | 0 | |
| d) Deterioration of bricks or stones? | NO Problem | -- | -- | 0 | |
| E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT | |||||
| a) Scour at base of slopes? | NO Problem | -- | -- | 0 | |
| b) Slippage of fill? | NO Problem | -- | -- | 0 | |
| c) Erosion of fill? | NO Problem | -- | -- | 0 | |
| d) Cracking of road or embankment edge? | NO Problem | -- | -- | 0 | |
| e) Piping failure of fill? | NO Problem | -- | -- | 0 | |
| 8 | Left Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10 | ||||
| A- GENERAL | |||||
| a) Erosion or scour at abutment? | NO Problem | -- | -- | 0 | |
| b) Damage to foundation? | NO Problem | -- | -- | 0 | |
| c) Movement of abutment? | NO Problem | -- | -- | 0 | |
| d) Debris against abutment? | NO Problem | -- | -- | 0 | |
| e) Vegetation growing on-or in abutment? | NO Problem | -- | -- | 0 | |
| f) Scour near to retaining walls? | NO Problem | -- | -- | 0 | |
| g) Movement of retaining walls? | NO Problem | -- | -- | 0 | |
| h) Water leaking down through the expansion joint? | NO Problem | -- | -- | 0 | |
| B- DRAINAGE SYSTEM | |||||
| a) Not enough weepholes? | NO Problem | -- | -- | 0 | |
| b) Weepholes not working? | NO Problem | -- | -- | 0 | |
| c) Water leaking through the abutment? | NO Problem | -- | -- | 0 | |
| C- CONCRETE WALLS | |||||
| a) Cracking? | NO Problem | -- | -- | 0 | |
| b) Spalling? | NO Problem | -- | -- | 0 | |
| c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
| d) Poor concrete? | NO Problem | -- | -- | 0 | |
| D- MASONRY WALLS | |||||
| a) Cracking? | NO Problem | -- | -- | 0 | |
| b) Bulging? | NO Problem | -- | -- | 0 | |
| c) Poor pointing? | NO Problem | -- | -- | 0 | |
| d) Deterioration of bricks or stones? | NO Problem | -- | -- | 0 | |
| E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT | |||||
| a) Scour at base of slopes? | NO Problem | -- | -- | 0 | |
| b) Slippage of fill? | NO Problem | -- | -- | 0 | |
| c) Erosion of fill? | NO Problem | -- | -- | 0 | |
| d) Cracking of road or embankment edge? | NO Problem | -- | -- | 0 | |
| e) Piping failure of fill? | NO Problem | -- | -- | 0 | |
| 9 | Embankments Component Weightage 10 | ||||
| A- STONE PITCHING SLOPE PROTECTION | |||||
| a) Cracking? | NO Problem | -- | -- | 0 | |
| b) Poor pointing? | NO Problem | -- | -- | 0 | |
| c) Scour or erosion at edge? | NO Problem | -- | -- | 0 | |
| d) Pieces broken off? | NO Problem | -- | -- | 0 | |
| e) Piping failure of fill? | NO Problem | -- | -- | 0 | |
| B- SLOPE PROTECTION WITH CRATES | |||||
| a) Not much movement of crates? | NO Problem | -- | -- | 0 | |
| b) Damage to crates or ties? | NO Problem | -- | -- | 0 | |
| C- PITCHING SLOPE PROTECTION WITH CONCRETE BLOCKS | |||||
| a) Slope getting washed out? | NO Problem | -- | -- | 0 | |
| b) Settlement? | NO Problem | -- | -- | 0 | |
| 10 | RIVER BED Component Weightage 10 | ||||
| A- BED PROTECTION AND APRONS | |||||
| a) Large holes in the river bed? | NO Problem | -- | -- | 0 | |
| b) Loss of material | NO Problem | -- | -- | 0 | |
| c) Crates broken away from pier or abutment? | NO Problem | -- | -- | 0 | |
| d) Damage to wires or ties? | NO Problem | -- | -- | 0 | |
| B- STONE PITCHING OR CONCRETE BED PROTECTION AND APRONS | |||||
| a) Scour at edge? | NO Problem | -- | -- | 0 | |
| b) Cracking? | NO Problem | -- | -- | 0 | |
| c) Spalling or stones missing? | Not Applicable | -- | -- | -- | |
| d) Erosion of surface? | Not Applicable | -- | -- | -- | |
| e) Corrosion of reinforcement? | Not Applicable | -- | -- | -- | |
| 11 | PIERs Component Weightage 60 | ||||
| Pier-1 | |||||
| TYPE - MASONRY PIERS | |||||
| a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
| b) Damage to foundations? | NO Problem | -- | -- | 0 | |
| c) Movement of pier? | NO Problem | -- | -- | 0 | |
| d) Impact damage? | NO Problem | -- | -- | 0 | |
| e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
| f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
| MASONRY PIERS | |||||
| a) Cracking? | NO Problem | -- | -- | 0 | |
| b) Poor pointing? | NO Problem | -- | -- | 0 | |
| c) Deterioration of masonry | NO Problem | -- | -- | 0 | |
| Pier-2 | |||||
| TYPE - MASONRY PIERS | |||||
| a) Scour near base of pier? | NO Problem | -- | -- | 0 | |
| b) Damage to foundations? | NO Problem | -- | -- | 0 | |
| c) Movement of pier? | NO Problem | -- | -- | 0 | |
| d) Impact damage? | NO Problem | -- | -- | 0 | |
| e) Vegetation growirig on pier? | NO Problem | -- | -- | 0 | |
| f) Water Leaking past expansion joint | NO Problem | -- | -- | 0 | |
| MASONRY PIERS | |||||
| a) Cracking? | NO Problem | -- | -- | 0 | |
| b) Poor pointing? | NO Problem | -- | -- | 0 | |
| c) Deterioration of masonry | NO Problem | -- | -- | 0 | |
End of Report
