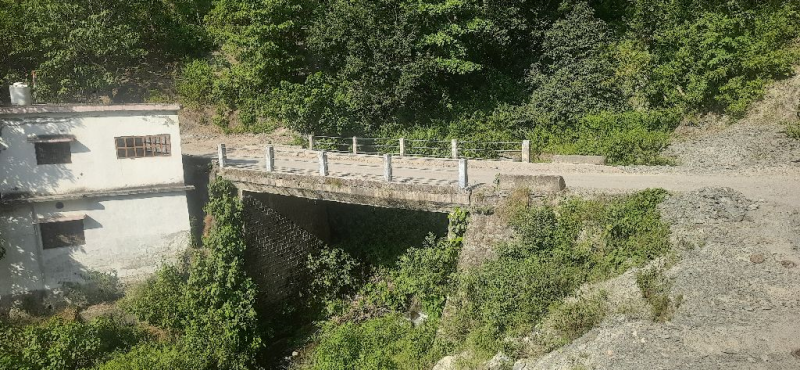

ID :1741 RCC motor Bridge

on Chainage 70.920 of Tehri Hindolakhal Devprayag Vyasghat Bilkhet state highway

In District Pauri Under PD Pauri Division

Critical Report on Bridge Condition

14 May 2024 0% 07 May 2024 0.19% 05 Oct 2023 8.91% 24 Jun 2023 0% 22 Nov 2022 9.34%

Form Filled By Mahendra Singh Dawan [39005937]

# Component Rating %
1 10 ROAD APPROCHES AND DECK 14.81 % 0.71 %
2 10 PARAPETS, RAILINGS AND CRASH BARRIERS 14.81 % 0.71 %
3 10 EXPANSION JOINT AT ABUTMENTS & PIERS 15.56 % 0.74 %
4 10 RIVER 4.04 % 0.19 %
5 10 BEARINGS 0.00 % 0.00 %
6 10 Right Side ABUTMENT, WING WALLS & RETAINING WALLS 1.85 % 0.09 %
7 10 Left Side ABUTMENT, WING WALLS & RETAINING WALLS 9.26 % 0.44 %
8 10 Embankments 11.11 % 0.53 %
9 10 RIVER BED 9.88 % 0.47 %
10 60 SUPERSTRUCTURE 8.73 % 2.49 %
11 60 PIERs 8.89 % 2.54 %
210 Overall 8.91%

Inspection Team

"Km71ch70.920 At SH-49 12.00mtr span For Bridge safety audit "

(Mahendra Singh Dawan)

Junior Engineer Civil

on Oct 05, 2023

Detail Report

# Parameter Problem ? How Bad? How Much?
1 ROAD APPROCHES AND DECK Component Weightage 10
A- ROAD SURFACE NEAR BRIDGE
a) Bumpy road surface near bridge? Yes Not So Bad Some Qty 2
B- DRAINAGE
a) Badly built road drainage near bridge? Yes Bad Not Much Qty 4
b) Blocked or damaged road drains? Yes Not So Bad Not Much Qty 1
c) Water on the deck? Yes Not So Bad Some Qty 2
d) Blocked or damaged deck drains? Yes Not So Bad Not Much Qty 1
C- WEARING COAT
CONCRETE WEARING COURSE
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Spalling? Yes Not So Bad Not Much Qty 1
c) Reinforcement exposed? Yes Not So Bad Not Much Qty 1
d) Poor concrete? Yes Not So Bad Not Much Qty 1
e) Wear of surface due to small stones? NO Problem -- -- 0
D- KERBS & FOOTPATHS
a) Loose railing fixtures? Yes Not So Bad Not Much Qty 1
a) Damaged or loose kerbs? Yes Not So Bad Not Much Qty 1
2 PARAPETS, RAILINGS AND CRASH BARRIERS Component Weightage 10
a) Impact damaged? Yes Not So Bad Some Qty 2
b) Loose or damaged fixings? Yes Not So Bad Some Qty 2
c) Loose base of posts? Yes Not So Bad Some Qty 2
d) Damaged coatirig or paint on steel surface? Yes Not So Bad Some Qty 2
e) Corrosion on steel surface? NO Problem -- -- 0
f) Cracking on Masonary Parapets? Yes Not So Bad Not Much Qty 1
g) Movement or bending of parapet? Yes Not So Bad Not Much Qty 1
h) Poor pointing/ Plaster on parapet? Yes Not So Bad Not Much Qty 1
i) Deterioration of bricks or stones? Yes Not So Bad Not Much Qty 1
3 EXPANSION JOINT AT ABUTMENTS & PIERS Component Weightage 10
a) Damage to concrete of deck end or dirt wall near joint? Yes Not So Bad Not Much Qty 1
b) Debris or vegetation in joint? Yes Not So Bad Not Much Qty 1
c) Loose or damaged fixtures? Yes Not So Bad Not Much Qty 1
d) Damage or corrosion to metal parts? Yes Not So Bad Some Qty 2
e) Damage to rubber waterseals? Yes Not So Bad Some Qty 2
4 RIVER Component Weightage 10
A- BLOCKAGES IN WATERWAY
a) Debris against piers or abutments? Yes Not So Bad Not Much Qty 1
b) Remains of old bridge under or upstream of the bridge? Yes Not So Bad Not Much Qty 1
c) Fencing or buildings under bridge? Yes Not So Bad Not Much Qty 1
d) Trees or bushes.growing under bridge? Yes Not So Bad Not Much Qty 1
B- CHANGE IN RIVER COURSE
a) River changing path upstream of bridge? NO Problem -- -- 0
b) New islands forming upstream of bridge? NO Problem -- -- 0
C- RIVER TRAINING WORKS
a) River attack beyond the upstream end of river training works? NO Problem -- -- 0
b) Damage to walls? NO Problem -- -- 0
c) Loss of pitching? NO Problem -- -- 0
d) Damage to crates, timber, fencing, etc.? NO Problem -- -- 0
e) Damage to trees? NO Problem -- -- 0
5 SUPERSTRUCTURE Component Weightage 60
CONCRETE
General
a) Impact damage to girders, trusses or bracings? Yes Not So Bad Not Much Qty 1
b) Debris or vegetation on beams, girders, trusses bracings or joints? Yes Not So Bad Not Much Qty 1
c) Water coming through the deck? Yes Not So Bad Not Much Qty 1
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? Yes Not So Bad Not Much Qty 1
e) Not enough vertical & horizontal clearances? Yes Not So Bad Not Much Qty 1
CONCRETE BEAMS
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Spalling? NO Problem -- -- 0
c) Corrosion of reinforcement? NO Problem -- -- 0
d) Poor concrete? Yes Not So Bad Not Much Qty 1
CONCRETE UNDERSIDE OF DECK
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Spalling? Yes Not So Bad Not Much Qty 1
c) Reinforcement corrosion? NO Problem -- -- 0
d) Poor concrete? Yes Not So Bad Not Much Qty 1
e) Less cover to reinforcement? Yes Not So Bad Not Much Qty 1
6 BEARINGS Component Weightage 10
RUBBER BEARINGS
a) Debris or vegetation around bearings? NO Problem -- -- 0
b) Bad drainage? NO Problem -- -- 0
c) Not enough room for the bridge span to move? NO Problem -- -- 0
d) Bearing not seated properly? NO Problem -- -- 0
e) Bridge span not seated properly on bearing? NO Problem -- -- 0
f) Damaged bedding mortar? NO Problem -- -- 0
g) Damaged or loose earthquake restraints? NO Problem -- -- 0
RUBBER BEARINGS
a) Splitting, tearing or cracking of rubber? NO Problem -- -- 0
b) Damaged bedding mortar? NO Problem -- -- 0
7 Right Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10
A- GENERAL
a) Erosion or scour at abutment? Yes Not So Bad Not Much Qty 1
b) Damage to foundation? Yes Not So Bad Not Much Qty 1
c) Movement of abutment? Yes Not So Bad Not Much Qty 1
d) Debris against abutment? NO Problem -- -- 0
e) Vegetation growing on-or in abutment? NO Problem -- -- 0
f) Scour near to retaining walls? NO Problem -- -- 0
g) Movement of retaining walls? NO Problem -- -- 0
h) Water leaking down through the expansion joint? NO Problem -- -- 0
B- DRAINAGE SYSTEM
a) Not enough weepholes? Yes Not So Bad Not Much Qty 1
b) Weepholes not working? NO Problem -- -- 0
c) Water leaking through the abutment? NO Problem -- -- 0
C- CONCRETE WALLS
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Corrosion of reinforcement? NO Problem -- -- 0
d) Poor concrete? NO Problem -- -- 0
D- MASONRY WALLS
a) Cracking? NO Problem -- -- 0
b) Bulging? NO Problem -- -- 0
c) Poor pointing? NO Problem -- -- 0
d) Deterioration of bricks or stones? NO Problem -- -- 0
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT
a) Scour at base of slopes? NO Problem -- -- 0
b) Slippage of fill? NO Problem -- -- 0
c) Erosion of fill? NO Problem -- -- 0
d) Cracking of road or embankment edge? NO Problem -- -- 0
e) Piping failure of fill? NO Problem -- -- 0
8 Left Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10
A- GENERAL
a) Erosion or scour at abutment? Yes Not So Bad Not Much Qty 1
b) Damage to foundation? Yes Not So Bad Not Much Qty 1
c) Movement of abutment? Yes Not So Bad Not Much Qty 1
d) Debris against abutment? Yes Not So Bad Not Much Qty 1
e) Vegetation growing on-or in abutment? Yes Not So Bad Not Much Qty 1
f) Scour near to retaining walls? Yes Not So Bad Not Much Qty 1
g) Movement of retaining walls? NO Problem -- -- 0
h) Water leaking down through the expansion joint? Yes Not So Bad Not Much Qty 1
B- DRAINAGE SYSTEM
a) Not enough weepholes? Yes Not So Bad Not Much Qty 1
b) Weepholes not working? NO Problem -- -- 0
c) Water leaking through the abutment? Yes Not So Bad Not Much Qty 1
C- CONCRETE WALLS
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Spalling? Yes Not So Bad Not Much Qty 1
c) Corrosion of reinforcement? NO Problem -- -- 0
d) Poor concrete? Yes Not So Bad Not Much Qty 1
D- MASONRY WALLS
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Bulging? NO Problem -- -- 0
c) Poor pointing? Yes Not So Bad Not Much Qty 1
d) Deterioration of bricks or stones? Yes Not So Bad Not Much Qty 1
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT
a) Scour at base of slopes? Yes Not So Bad Not Much Qty 1
b) Slippage of fill? Yes Not So Bad Not Much Qty 1
c) Erosion of fill? Yes Not So Bad Not Much Qty 1
d) Cracking of road or embankment edge? Yes Not So Bad Not Much Qty 1
e) Piping failure of fill? Yes Not So Bad Not Much Qty 1
9 Embankments Component Weightage 10
A- STONE PITCHING SLOPE PROTECTION
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Poor pointing? Yes Not So Bad Not Much Qty 1
c) Scour or erosion at edge? Yes Not So Bad Not Much Qty 1
d) Pieces broken off? Yes Not So Bad Not Much Qty 1
e) Piping failure of fill? Yes Not So Bad Not Much Qty 1
B- SLOPE PROTECTION WITH CRATES
a) Not much movement of crates? Yes Not So Bad Not Much Qty 1
b) Damage to crates or ties? Yes Not So Bad Not Much Qty 1
C- PITCHING SLOPE PROTECTION WITH CONCRETE BLOCKS
a) Slope getting washed out? Yes Not So Bad Not Much Qty 1
b) Settlement? Yes Not So Bad Not Much Qty 1
10 RIVER BED Component Weightage 10
A- BED PROTECTION AND APRONS
a) Large holes in the river bed? Yes Not So Bad Not Much Qty 1
b) Loss of material Yes Not So Bad Not Much Qty 1
c) Crates broken away from pier or abutment? NO Problem -- -- 0
d) Damage to wires or ties? Yes Not So Bad Not Much Qty 1
B- STONE PITCHING OR CONCRETE BED PROTECTION AND APRONS
a) Scour at edge? Yes Not So Bad Not Much Qty 1
b) Cracking? Yes Not So Bad Not Much Qty 1
c) Spalling or stones missing? Yes Not So Bad Not Much Qty 1
d) Erosion of surface? Yes Not So Bad Not Much Qty 1
e) Corrosion of reinforcement? Yes Not So Bad Not Much Qty 1
11 PIERs Component Weightage 60
CONCRETE PIERS
a) Scour near base of pier? Yes Not So Bad Not Much Qty 1
b) Damage to foundations? Yes Not So Bad Not Much Qty 1
c) Movement of pier? Yes Not So Bad Not Much Qty 1
d) Impact damage? Yes Not So Bad Not Much Qty 1
e) Vegetation growirig on pier? Yes Not So Bad Not Much Qty 1
f) Water Leaking past expansion joint NO Problem -- -- 0
CONCRETE PIERS
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Spalling? Yes Not So Bad Not Much Qty 1
c) Corrosion of reinforcement? NO Problem -- -- 0
d) Poor concrete? Yes Not So Bad Not Much Qty 1

End of Report
