on Chainage 17.130 of Majkhali Someshwar motor road
In District Almora Under PD Almora Division
Critical Report on Bridge Condition
Form Filled By Prakash Chandra Pant [3700222251032]
Inspection Team

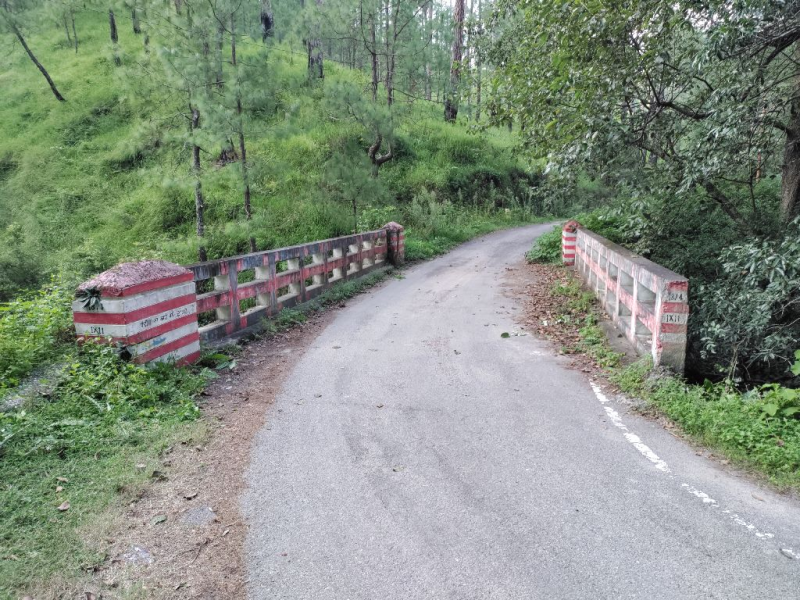

"Bridge inspection MS 18(1)"
(Prakash Chandra Pant)
Additional Assistant Engineer Civil
on Aug 27, 2022

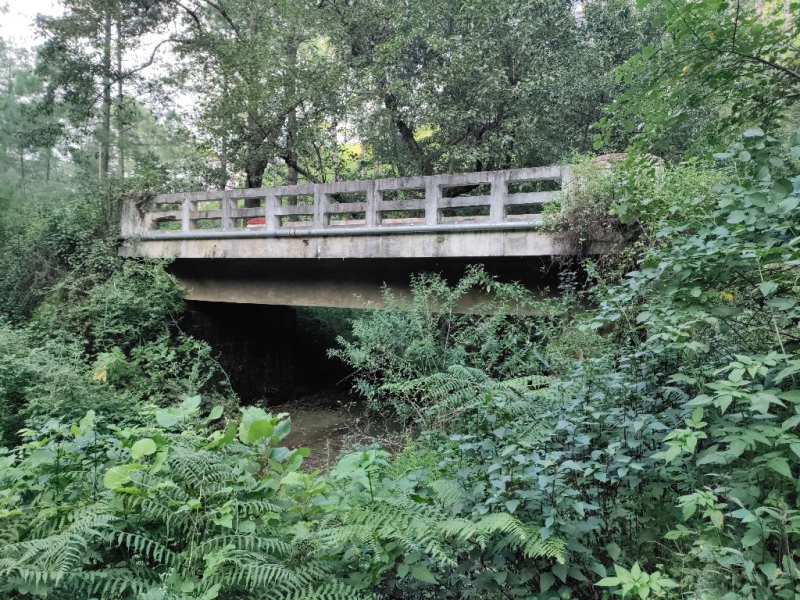

"Bridge inspection MS Road Km 18"
(Prakash Chandra Pant)
Additional Assistant Engineer Civil
on Aug 27, 2022
Detail Report
| # | Parameter | Problem ? | How Bad? | How Much? | |
|---|---|---|---|---|---|
| 1 | ROAD APPROCHES AND DECK Component Weightage 10 | ||||
| A- ROAD SURFACE NEAR BRIDGE | |||||
| a) Bumpy road surface near bridge? | NO Problem | -- | -- | 0 | |
| B- DRAINAGE | |||||
| a) Badly built road drainage near bridge? | NO Problem | -- | -- | 0 | |
| b) Blocked or damaged road drains? | NO Problem | -- | -- | 0 | |
| c) Water on the deck? | Yes | Not So Bad | Some Qty | 2 | |
| d) Blocked or damaged deck drains? | Yes | Bad | Some Qty | 5 | |
| C- WEARING COAT | |||||
| BITUMEN WEARING COURSE | |||||
| a) Surface breaking up or lifting off? | NO Problem | -- | -- | 0 | |
| b) Cracking above joints ? | Yes | Not So Bad | Not Much Qty | 1 | |
| D- KERBS & FOOTPATHS | |||||
| a) Loose railing fixtures? | NO Problem | -- | -- | 0 | |
| a) Damaged or loose kerbs? | NO Problem | -- | -- | 0 | |
| 2 | PARAPETS, RAILINGS AND CRASH BARRIERS Component Weightage 10 | ||||
| a) Impact damaged? | Yes | Not So Bad | Some Qty | 2 | |
| b) Loose or damaged fixings? | NO Problem | -- | -- | 0 | |
| c) Loose base of posts? | Yes | Not So Bad | Not Much Qty | 1 | |
| d) Damaged coatirig or paint on steel surface? | Not Applicable | -- | -- | -- | |
| e) Corrosion on steel surface? | Not Applicable | -- | -- | -- | |
| f) Cracking on Masonary Parapets? | Yes | Not So Bad | Not Much Qty | 1 | |
| g) Movement or bending of parapet? | Yes | Not So Bad | Not Much Qty | 1 | |
| h) Poor pointing/ Plaster on parapet? | Not Applicable | -- | -- | -- | |
| i) Deterioration of bricks or stones? | Not Applicable | -- | -- | -- | |
| 3 | EXPANSION JOINT AT ABUTMENTS & PIERS Component Weightage 10 | ||||
| a) Damage to concrete of deck end or dirt wall near joint? | Not Applicable | -- | -- | -- | |
| b) Debris or vegetation in joint? | Not Applicable | -- | -- | -- | |
| c) Loose or damaged fixtures? | Not Applicable | -- | -- | -- | |
| d) Damage or corrosion to metal parts? | Not Applicable | -- | -- | -- | |
| e) Damage to rubber waterseals? | Not Applicable | -- | -- | -- | |
| 4 | RIVER Component Weightage 10 | ||||
| A- BLOCKAGES IN WATERWAY | |||||
| a) Debris against piers or abutments? | NO Problem | -- | -- | 0 | |
| b) Remains of old bridge under or upstream of the bridge? | NO Problem | -- | -- | 0 | |
| c) Fencing or buildings under bridge? | NO Problem | -- | -- | 0 | |
| d) Trees or bushes.growing under bridge? | NO Problem | -- | -- | 0 | |
| B- CHANGE IN RIVER COURSE | |||||
| a) River changing path upstream of bridge? | NO Problem | -- | -- | 0 | |
| b) New islands forming upstream of bridge? | NO Problem | -- | -- | 0 | |
| C- RIVER TRAINING WORKS | |||||
| a) River attack beyond the upstream end of river training works? | NO Problem | -- | -- | 0 | |
| b) Damage to walls? | NO Problem | -- | -- | 0 | |
| c) Loss of pitching? | NO Problem | -- | -- | 0 | |
| d) Damage to crates, timber, fencing, etc.? | NO Problem | -- | -- | 0 | |
| e) Damage to trees? | NO Problem | -- | -- | 0 | |
| 5 | SUPERSTRUCTURE Component Weightage 60 | ||||
| CONCRETE | |||||
| General | |||||
| a) Impact damage to girders, trusses or bracings? | NO Problem | -- | -- | 0 | |
| b) Debris or vegetation on beams, girders, trusses bracings or joints? | Yes | Not So Bad | Not Much Qty | 1 | |
| c) Water coming through the deck? | Yes | Not So Bad | Not Much Qty | 1 | |
| d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | Not Applicable | -- | -- | -- | |
| e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
| CONCRETE BEAMS | |||||
| a) Cracking? | NO Problem | -- | -- | 0 | |
| b) Spalling? | NO Problem | -- | -- | 0 | |
| c) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
| d) Poor concrete? | NO Problem | -- | -- | 0 | |
| CONCRETE UNDERSIDE OF DECK | |||||
| a) Cracking? | NO Problem | -- | -- | 0 | |
| b) Spalling? | NO Problem | -- | -- | 0 | |
| c) Reinforcement corrosion? | NO Problem | -- | -- | 0 | |
| d) Poor concrete? | NO Problem | -- | -- | 0 | |
| e) Less cover to reinforcement? | NO Problem | -- | -- | 0 | |
| 6 | BEARINGS Component Weightage 10 | ||||
| NOT APPLICABLE | |||||
| 7 | Right Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10 | ||||
| A- GENERAL | |||||
| a) Erosion or scour at abutment? | NO Problem | -- | -- | 0 | |
| b) Damage to foundation? | NO Problem | -- | -- | 0 | |
| c) Movement of abutment? | NO Problem | -- | -- | 0 | |
| d) Debris against abutment? | NO Problem | -- | -- | 0 | |
| e) Vegetation growing on-or in abutment? | Yes | Not So Bad | Some Qty | 2 | |
| f) Scour near to retaining walls? | NO Problem | -- | -- | 0 | |
| g) Movement of retaining walls? | NO Problem | -- | -- | 0 | |
| h) Water leaking down through the expansion joint? | NO Problem | -- | -- | 0 | |
| B- DRAINAGE SYSTEM | |||||
| a) Not enough weepholes? | Yes | Bad | Some Qty | 5 | |
| b) Weepholes not working? | Yes | Bad | Much Qty | 6 | |
| c) Water leaking through the abutment? | Yes | Not So Bad | Some Qty | 2 | |
| C- CONCRETE WALLS | |||||
| a) Cracking? | Not Applicable | -- | -- | -- | |
| b) Spalling? | Not Applicable | -- | -- | -- | |
| c) Corrosion of reinforcement? | Not Applicable | -- | -- | -- | |
| d) Poor concrete? | Not Applicable | -- | -- | -- | |
| D- MASONRY WALLS | |||||
| a) Cracking? | NO Problem | -- | -- | 0 | |
| b) Bulging? | NO Problem | -- | -- | 0 | |
| c) Poor pointing? | NO Problem | -- | -- | 0 | |
| d) Deterioration of bricks or stones? | NO Problem | -- | -- | 0 | |
| E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT | |||||
| a) Scour at base of slopes? | NO Problem | -- | -- | 0 | |
| b) Slippage of fill? | NO Problem | -- | -- | 0 | |
| c) Erosion of fill? | NO Problem | -- | -- | 0 | |
| d) Cracking of road or embankment edge? | NO Problem | -- | -- | 0 | |
| e) Piping failure of fill? | NO Problem | -- | -- | 0 | |
| 8 | Left Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10 | ||||
| A- GENERAL | |||||
| a) Erosion or scour at abutment? | NO Problem | -- | -- | 0 | |
| b) Damage to foundation? | NO Problem | -- | -- | 0 | |
| c) Movement of abutment? | NO Problem | -- | -- | 0 | |
| d) Debris against abutment? | NO Problem | -- | -- | 0 | |
| e) Vegetation growing on-or in abutment? | Yes | Not So Bad | Some Qty | 2 | |
| f) Scour near to retaining walls? | NO Problem | -- | -- | 0 | |
| g) Movement of retaining walls? | NO Problem | -- | -- | 0 | |
| h) Water leaking down through the expansion joint? | Yes | Not So Bad | Some Qty | 2 | |
| B- DRAINAGE SYSTEM | |||||
| a) Not enough weepholes? | Yes | Bad | Some Qty | 5 | |
| b) Weepholes not working? | Yes | Bad | Much Qty | 6 | |
| c) Water leaking through the abutment? | Yes | Not So Bad | Some Qty | 2 | |
| C- CONCRETE WALLS | |||||
| a) Cracking? | Not Applicable | -- | -- | -- | |
| b) Spalling? | Not Applicable | -- | -- | -- | |
| c) Corrosion of reinforcement? | Not Applicable | -- | -- | -- | |
| d) Poor concrete? | Not Applicable | -- | -- | -- | |
| D- MASONRY WALLS | |||||
| a) Cracking? | NO Problem | -- | -- | 0 | |
| b) Bulging? | NO Problem | -- | -- | 0 | |
| c) Poor pointing? | NO Problem | -- | -- | 0 | |
| d) Deterioration of bricks or stones? | NO Problem | -- | -- | 0 | |
| E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT | |||||
| a) Scour at base of slopes? | NO Problem | -- | -- | 0 | |
| b) Slippage of fill? | NO Problem | -- | -- | 0 | |
| c) Erosion of fill? | NO Problem | -- | -- | 0 | |
| d) Cracking of road or embankment edge? | NO Problem | -- | -- | 0 | |
| e) Piping failure of fill? | NO Problem | -- | -- | 0 | |
| 9 | Embankments Component Weightage 10 | ||||
| A- STONE PITCHING SLOPE PROTECTION | |||||
| a) Cracking? | NO Problem | -- | -- | 0 | |
| b) Poor pointing? | NO Problem | -- | -- | 0 | |
| c) Scour or erosion at edge? | NO Problem | -- | -- | 0 | |
| d) Pieces broken off? | NO Problem | -- | -- | 0 | |
| e) Piping failure of fill? | NO Problem | -- | -- | 0 | |
| B- SLOPE PROTECTION WITH CRATES | |||||
| a) Not much movement of crates? | Not Applicable | -- | -- | -- | |
| b) Damage to crates or ties? | Not Applicable | -- | -- | -- | |
| C- PITCHING SLOPE PROTECTION WITH CONCRETE BLOCKS | |||||
| a) Slope getting washed out? | Not Applicable | -- | -- | -- | |
| b) Settlement? | Not Applicable | -- | -- | -- | |
| 10 | RIVER BED Component Weightage 10 | ||||
| A- BED PROTECTION AND APRONS | |||||
| a) Large holes in the river bed? | NO Problem | -- | -- | 0 | |
| b) Loss of material | NO Problem | -- | -- | 0 | |
| c) Crates broken away from pier or abutment? | Not Applicable | -- | -- | -- | |
| d) Damage to wires or ties? | Not Applicable | -- | -- | -- | |
| B- STONE PITCHING OR CONCRETE BED PROTECTION AND APRONS | |||||
| a) Scour at edge? | NO Problem | -- | -- | 0 | |
| b) Cracking? | NO Problem | -- | -- | 0 | |
| c) Spalling or stones missing? | NO Problem | -- | -- | 0 | |
| d) Erosion of surface? | NO Problem | -- | -- | 0 | |
| e) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
End of Report
