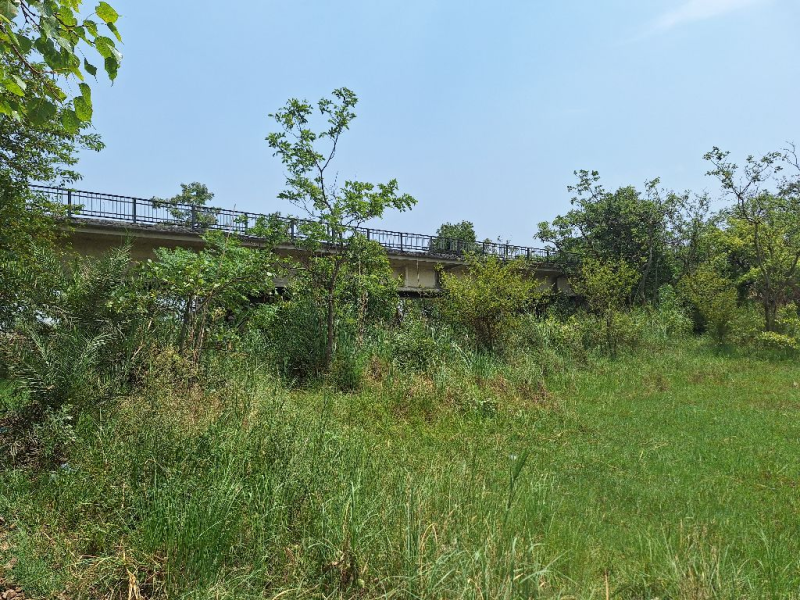

ID :2200 Bodi River Bridge

on Chainage 24.900 of Purkazi Laksar Haridwar national highway

In District Haridwar Under NH Div Dehradun Division

Critical Report on Bridge Condition

04 Jun 2026 0.32% 10 Jun 2025 1.6% 20 Jun 2024 9.6% 17 Nov 2023 5.36% 17 Nov 2023 0% 03 Jul 2023 2.13% 24 Jun 2023 0.11% 03 Dec 2022 0.35% 29 Nov 2022 0.87%

Form Filled By Deepak Gupta [420010315]

# Component Rating %
1 10 ROAD APPROCHES AND DECK 13.58 % 0.65 %
2 10 PARAPETS, RAILINGS AND CRASH BARRIERS 17.28 % 0.82 %
3 10 EXPANSION JOINT AT ABUTMENTS & PIERS 13.33 % 0.63 %
4 10 RIVER 17.17 % 0.82 %
5 10 BEARINGS 22.22 % 1.06 %
6 10 Right Side ABUTMENT, WING WALLS & RETAINING WALLS 13.89 % 0.66 %
7 10 Left Side ABUTMENT, WING WALLS & RETAINING WALLS 10.65 % 0.51 %
8 10 Embankments 3.70 % 0.18 %
9 10 RIVER BED 4.94 % 0.24 %
10 60 SUPERSTRUCTURE 6.35 % 1.81 %
11 60 PIERs 7.78 % 2.22 %
210 Overall 9.6%

Inspection Team

"Bridge inspection before monsoon "

(Deepak Gupta)

Executive Engineer Civil

on Jun 21, 2024

Detail Report

# Parameter Problem ? How Bad? How Much?
1 ROAD APPROCHES AND DECK Component Weightage 10
A- ROAD SURFACE NEAR BRIDGE
a) Bumpy road surface near bridge? Yes Not So Bad Not Much Qty 1
B- DRAINAGE
a) Badly built road drainage near bridge? Yes Not So Bad Not Much Qty 1
b) Blocked or damaged road drains? Yes Not So Bad Some Qty 2
c) Water on the deck? Yes Not So Bad Not Much Qty 1
d) Blocked or damaged deck drains? Yes Not So Bad Not Much Qty 1
C- WEARING COAT
BITUMEN WEARING COURSE
a) Surface breaking up or lifting off? Yes Not So Bad Not Much Qty 1
b) Cracking above joints ? Yes Not So Bad Some Qty 2
D- KERBS & FOOTPATHS
a) Loose railing fixtures? Yes Not So Bad Not Much Qty 1
a) Damaged or loose kerbs? Yes Not So Bad Not Much Qty 1
2 PARAPETS, RAILINGS AND CRASH BARRIERS Component Weightage 10
a) Impact damaged? Yes Not So Bad Much Qty 3
b) Loose or damaged fixings? Yes Not So Bad Not Much Qty 1
c) Loose base of posts? Yes Not So Bad Not Much Qty 1
d) Damaged coatirig or paint on steel surface? Yes Not So Bad Some Qty 2
e) Corrosion on steel surface? Yes Not So Bad Some Qty 2
f) Cracking on Masonary Parapets? Yes Not So Bad Some Qty 2
g) Movement or bending of parapet? Yes Not So Bad Not Much Qty 1
h) Poor pointing/ Plaster on parapet? Yes Not So Bad Not Much Qty 1
i) Deterioration of bricks or stones? Yes Not So Bad Not Much Qty 1
3 EXPANSION JOINT AT ABUTMENTS & PIERS Component Weightage 10
a) Damage to concrete of deck end or dirt wall near joint? Yes Not So Bad Not Much Qty 1
b) Debris or vegetation in joint? Yes Not So Bad Not Much Qty 1
c) Loose or damaged fixtures? Yes Not So Bad Some Qty 2
d) Damage or corrosion to metal parts? Yes Not So Bad Not Much Qty 1
e) Damage to rubber waterseals? Yes Not So Bad Not Much Qty 1
4 RIVER Component Weightage 10
A- BLOCKAGES IN WATERWAY
a) Debris against piers or abutments? Yes Bad Some Qty 5
b) Remains of old bridge under or upstream of the bridge? NO Problem -- -- 0
c) Fencing or buildings under bridge? NO Problem -- -- 0
d) Trees or bushes.growing under bridge? Yes Not So Bad Much Qty 3
B- CHANGE IN RIVER COURSE
a) River changing path upstream of bridge? Yes Not So Bad Some Qty 2
b) New islands forming upstream of bridge? Yes Not So Bad Some Qty 2
C- RIVER TRAINING WORKS
a) River attack beyond the upstream end of river training works? Yes Not So Bad Not Much Qty 1
b) Damage to walls? Yes Not So Bad Not Much Qty 1
c) Loss of pitching? Yes Not So Bad Some Qty 2
d) Damage to crates, timber, fencing, etc.? NO Problem -- -- 0
e) Damage to trees? Yes Not So Bad Not Much Qty 1
5 SUPERSTRUCTURE Component Weightage 60
SUPERSTRUCTURE -1
TYPE - CONCRETE
General
a) Impact damage to girders, trusses or bracings? NO Problem -- -- 0
b) Debris or vegetation on beams, girders, trusses bracings or joints? Yes Not So Bad Some Qty 2
c) Water coming through the deck? Yes Not So Bad Some Qty 2
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? Yes Not So Bad Not Much Qty 1
e) Not enough vertical & horizontal clearances? NO Problem -- -- 0
CONCRETE BEAMS
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Corrosion of reinforcement? Yes Not So Bad Some Qty 2
d) Poor concrete? NO Problem -- -- 0
CONCRETE UNDERSIDE OF DECK
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Reinforcement corrosion? Yes Not So Bad Some Qty 2
d) Poor concrete? NO Problem -- -- 0
e) Less cover to reinforcement? Yes Not So Bad Not Much Qty 1
SUPERSTRUCTURE -2
TYPE - CONCRETE
General
a) Impact damage to girders, trusses or bracings? NO Problem -- -- 0
b) Debris or vegetation on beams, girders, trusses bracings or joints? Yes Not So Bad Some Qty 2
c) Water coming through the deck? Yes Not So Bad Some Qty 2
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? Yes Not So Bad Not Much Qty 1
e) Not enough vertical & horizontal clearances? NO Problem -- -- 0
CONCRETE BEAMS
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Corrosion of reinforcement? Yes Not So Bad Not Much Qty 1
d) Poor concrete? NO Problem -- -- 0
CONCRETE UNDERSIDE OF DECK
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Reinforcement corrosion? Yes Not So Bad Not Much Qty 1
d) Poor concrete? NO Problem -- -- 0
e) Less cover to reinforcement? Yes Not So Bad Not Much Qty 1
SUPERSTRUCTURE -3
TYPE - CONCRETE
General
a) Impact damage to girders, trusses or bracings? NO Problem -- -- 0
b) Debris or vegetation on beams, girders, trusses bracings or joints? Yes Not So Bad Not Much Qty 1
c) Water coming through the deck? Yes Not So Bad Not Much Qty 1
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? Yes Not So Bad Not Much Qty 1
e) Not enough vertical & horizontal clearances? NO Problem -- -- 0
CONCRETE BEAMS
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Corrosion of reinforcement? Yes Not So Bad Not Much Qty 1
d) Poor concrete? NO Problem -- -- 0
CONCRETE UNDERSIDE OF DECK
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Reinforcement corrosion? Yes Not So Bad Not Much Qty 1
d) Poor concrete? NO Problem -- -- 0
e) Less cover to reinforcement? Yes Not So Bad Not Much Qty 1
6 BEARINGS Component Weightage 10
METAL BEARINGS
a) Debris or vegetation around bearings? Yes Not So Bad Some Qty 2
b) Bad drainage? Yes Not So Bad Not Much Qty 1
c) Not enough room for the bridge span to move? NO Problem -- -- 0
d) Bearing not seated properly? NO Problem -- -- 0
e) Bridge span not seated properly on bearing? NO Problem -- -- 0
f) Damaged bedding mortar? Yes Not So Bad Not Much Qty 1
g) Damaged or loose earthquake restraints? NO Problem -- -- 0
METAL BEARINGS
a) Parts not properly seated? NO Problem -- -- 0
b) Parts not free to move? NO Problem -- -- 0
c) Problem with the lubrication system? Yes Very Bad Much Qty 9
d) Sliding surfaces damaged? Yes Not So Bad Much Qty 3
e) Cracks or bends in metal parts/ Bearing? Yes Not So Bad Not Much Qty 1
f) Corrosion of metal parts? Yes Very Bad Much Qty 9
7 Right Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10
A- GENERAL
a) Erosion or scour at abutment? Yes Not So Bad Not Much Qty 1
b) Damage to foundation? Yes Not So Bad Not Much Qty 1
c) Movement of abutment? NO Problem -- -- 0
d) Debris against abutment? Yes Not So Bad Much Qty 3
e) Vegetation growing on-or in abutment? Yes Not So Bad Much Qty 3
f) Scour near to retaining walls? Yes Not So Bad Not Much Qty 1
g) Movement of retaining walls? NO Problem -- -- 0
h) Water leaking down through the expansion joint? Yes Not So Bad Not Much Qty 1
B- DRAINAGE SYSTEM
a) Not enough weepholes? Yes Bad Some Qty 5
b) Weepholes not working? Yes Bad Much Qty 6
c) Water leaking through the abutment? Yes Not So Bad Much Qty 3
C- CONCRETE WALLS
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Corrosion of reinforcement? Yes Not So Bad Some Qty 2
d) Poor concrete? NO Problem -- -- 0
D- MASONRY WALLS
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Bulging? Yes Not So Bad Not Much Qty 1
c) Poor pointing? NO Problem -- -- 0
d) Deterioration of bricks or stones? Yes Not So Bad Not Much Qty 1
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT
a) Scour at base of slopes? Yes Not So Bad Not Much Qty 1
b) Slippage of fill? NO Problem -- -- 0
c) Erosion of fill? NO Problem -- -- 0
d) Cracking of road or embankment edge? NO Problem -- -- 0
e) Piping failure of fill? NO Problem -- -- 0
8 Left Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10
A- GENERAL
a) Erosion or scour at abutment? Yes Not So Bad Not Much Qty 1
b) Damage to foundation? NO Problem -- -- 0
c) Movement of abutment? NO Problem -- -- 0
d) Debris against abutment? Yes Not So Bad Much Qty 3
e) Vegetation growing on-or in abutment? Yes Not So Bad Much Qty 3
f) Scour near to retaining walls? Yes Not So Bad Not Much Qty 1
g) Movement of retaining walls? NO Problem -- -- 0
h) Water leaking down through the expansion joint? Yes Not So Bad Not Much Qty 1
B- DRAINAGE SYSTEM
a) Not enough weepholes? Yes Bad Not Much Qty 4
b) Weepholes not working? Yes Bad Not Much Qty 4
c) Water leaking through the abutment? Yes Not So Bad Not Much Qty 1
C- CONCRETE WALLS
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Corrosion of reinforcement? Yes Not So Bad Not Much Qty 1
d) Poor concrete? NO Problem -- -- 0
D- MASONRY WALLS
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Bulging? NO Problem -- -- 0
c) Poor pointing? Yes Not So Bad Not Much Qty 1
d) Deterioration of bricks or stones? Yes Not So Bad Not Much Qty 1
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT
a) Scour at base of slopes? Yes Not So Bad Not Much Qty 1
b) Slippage of fill? NO Problem -- -- 0
c) Erosion of fill? NO Problem -- -- 0
d) Cracking of road or embankment edge? NO Problem -- -- 0
e) Piping failure of fill? NO Problem -- -- 0
9 Embankments Component Weightage 10
A- STONE PITCHING SLOPE PROTECTION
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Poor pointing? Yes Not So Bad Not Much Qty 1
c) Scour or erosion at edge? Yes Not So Bad Not Much Qty 1
d) Pieces broken off? NO Problem -- -- 0
e) Piping failure of fill? NO Problem -- -- 0
B- SLOPE PROTECTION WITH CRATES
a) Not much movement of crates? NO Problem -- -- 0
b) Damage to crates or ties? NO Problem -- -- 0
C- PITCHING SLOPE PROTECTION WITH CONCRETE BLOCKS
a) Slope getting washed out? NO Problem -- -- 0
b) Settlement? NO Problem -- -- 0
10 RIVER BED Component Weightage 10
A- BED PROTECTION AND APRONS
a) Large holes in the river bed? Yes Not So Bad Not Much Qty 1
b) Loss of material Yes Not So Bad Not Much Qty 1
c) Crates broken away from pier or abutment? Yes Not So Bad Not Much Qty 1
d) Damage to wires or ties? NO Problem -- -- 0
B- STONE PITCHING OR CONCRETE BED PROTECTION AND APRONS
a) Scour at edge? Yes Not So Bad Not Much Qty 1
b) Cracking? NO Problem -- -- 0
c) Spalling or stones missing? NO Problem -- -- 0
d) Erosion of surface? NO Problem -- -- 0
e) Corrosion of reinforcement? NO Problem -- -- 0
11 PIERs Component Weightage 60
Pier-1
TYPE - CONCRETE PIERS
a) Scour near base of pier? NO Problem -- -- 0
b) Damage to foundations? NO Problem -- -- 0
c) Movement of pier? NO Problem -- -- 0
d) Impact damage? NO Problem -- -- 0
e) Vegetation growirig on pier? Yes Bad Some Qty 5
f) Water Leaking past expansion joint Yes Not So Bad Not Much Qty 1
CONCRETE PIERS
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Corrosion of reinforcement? Yes Not So Bad Not Much Qty 1
d) Poor concrete? NO Problem -- -- 0
Pier-2
TYPE - CONCRETE PIERS
a) Scour near base of pier? NO Problem -- -- 0
b) Damage to foundations? NO Problem -- -- 0
c) Movement of pier? NO Problem -- -- 0
d) Impact damage? NO Problem -- -- 0
e) Vegetation growirig on pier? Yes Bad Some Qty 5
f) Water Leaking past expansion joint Yes Not So Bad Not Much Qty 1
CONCRETE PIERS
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Corrosion of reinforcement? Yes Not So Bad Not Much Qty 1
d) Poor concrete? NO Problem -- -- 0

End of Report
