ID :2935 R.C.C Bridle Bridge Over Pogtha Gadhera near Pogtha

on Chainage 1.000 of road unknown

In District Chamoli Under CD Pokhari Division

Critical Report on Bridge Condition

14 May 2026 15.18% 18 Jun 2025 5.75% 25 Nov 2024 4.6% 10 Jun 2024 4.95% 20 Dec 2023 4.06%

Form Filled By ANKIT SINGH [42270313M02425]

# Component Rating %
1 10 ROAD APPROCHES AND DECK 19.44 % 1.30 %
2 10 PARAPETS, RAILINGS AND CRASH BARRIERS 9.88 % 0.66 %
3 10 EXPANSION JOINT AT ABUTMENTS & PIERS 25.00 % 1.67 %
4 10 RIVER 17.17 % 1.14 %
5 10 BEARINGS 0.00 % 0.00 %
6 10 Right Side ABUTMENT, WING WALLS & RETAINING WALLS 14.81 % 0.99 %
7 10 Left Side ABUTMENT, WING WALLS & RETAINING WALLS 14.35 % 0.96 %
8 10 Embankments 13.58 % 0.91 %
9 10 RIVER BED 8.64 % 0.58 %
10 60 SUPERSTRUCTURE 17.46 % 6.98 %
150 Overall 15.19%

Inspection Team

"Parapets are totally damaged so unsafe for pedestrian traffic "

(ANKIT SINGH)

Junior Engineer Civil

on May 14, 2026

Detail Report

# Parameter Problem ? How Bad? How Much?
1 ROAD APPROCHES AND DECK Component Weightage 10

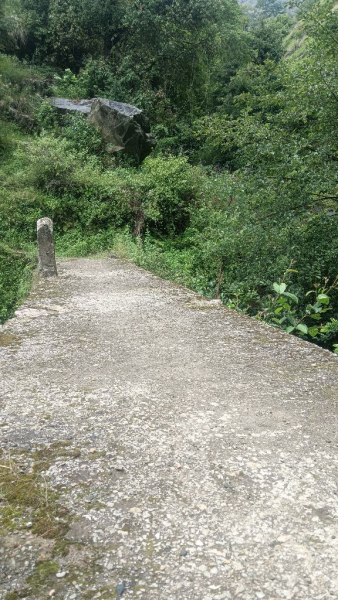

A- ROAD SURFACE NEAR BRIDGE
a) Bumpy road surface near bridge? Yes Not So Bad Not Much Qty 1
B- DRAINAGE
a) Badly built road drainage near bridge? Yes Not So Bad Some Qty 2
b) Blocked or damaged road drains? Yes Not So Bad Not Much Qty 1
c) Water on the deck? Yes Not So Bad Some Qty 2
d) Blocked or damaged deck drains? Yes Not So Bad Some Qty 2
C- WEARING COAT
CONCRETE WEARING COURSE
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Spalling? Yes Not So Bad Some Qty 2
c) Reinforcement exposed? Yes Not So Bad Some Qty 2
d) Poor concrete? Yes Not So Bad Some Qty 2
e) Wear of surface due to small stones? Yes Not So Bad Some Qty 2
D- KERBS & FOOTPATHS
a) Loose railing fixtures? Yes Not So Bad Some Qty 2
a) Damaged or loose kerbs? Yes Not So Bad Some Qty 2
2 PARAPETS, RAILINGS AND CRASH BARRIERS Component Weightage 10
a) Impact damaged? NO Problem -- -- 0
b) Loose or damaged fixings? NO Problem -- -- 0
c) Loose base of posts? NO Problem -- -- 0
d) Damaged coatirig or paint on steel surface? Yes Not So Bad Some Qty 2
e) Corrosion on steel surface? Yes Not So Bad Much Qty 3
f) Cracking on Masonary Parapets? Yes Not So Bad Much Qty 3
g) Movement or bending of parapet? NO Problem -- -- 0
h) Poor pointing/ Plaster on parapet? NO Problem -- -- 0
i) Deterioration of bricks or stones? NO Problem -- -- 0
3 EXPANSION JOINT AT ABUTMENTS & PIERS Component Weightage 10
a) Damage to concrete of deck end or dirt wall near joint? Not Applicable -- -- --
b) Debris or vegetation in joint? Yes Not So Bad Not Much Qty 1
c) Loose or damaged fixtures? Yes Not So Bad Much Qty 3
d) Damage or corrosion to metal parts? Yes Not So Bad Some Qty 2
e) Damage to rubber waterseals? Yes Not So Bad Much Qty 3
4 RIVER Component Weightage 10
A- BLOCKAGES IN WATERWAY
a) Debris against piers or abutments? Yes Not So Bad Some Qty 2
b) Remains of old bridge under or upstream of the bridge? Yes Not So Bad Some Qty 2
c) Fencing or buildings under bridge? Yes Not So Bad Not Much Qty 1
d) Trees or bushes.growing under bridge? Yes Not So Bad Some Qty 2
B- CHANGE IN RIVER COURSE
a) River changing path upstream of bridge? Yes Not So Bad Some Qty 2
b) New islands forming upstream of bridge? Yes Not So Bad Some Qty 2
C- RIVER TRAINING WORKS
a) River attack beyond the upstream end of river training works? Yes Not So Bad Some Qty 2
b) Damage to walls? Yes Not So Bad Not Much Qty 1
c) Loss of pitching? Yes Not So Bad Not Much Qty 1
d) Damage to crates, timber, fencing, etc.? Yes Not So Bad Not Much Qty 1
e) Damage to trees? Yes Not So Bad Not Much Qty 1
5 SUPERSTRUCTURE Component Weightage 60
CONCRETE
General
a) Impact damage to girders, trusses or bracings? Yes Not So Bad Not Much Qty 1
b) Debris or vegetation on beams, girders, trusses bracings or joints? Yes Not So Bad Some Qty 2
c) Water coming through the deck? Yes Not So Bad Some Qty 2
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? Yes Not So Bad Some Qty 2
e) Not enough vertical & horizontal clearances? Yes Not So Bad Not Much Qty 1
CONCRETE BEAMS
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Spalling? Yes Not So Bad Some Qty 2
c) Corrosion of reinforcement? Yes Not So Bad Some Qty 2
d) Poor concrete? Yes Not So Bad Not Much Qty 1
CONCRETE UNDERSIDE OF DECK
a) Cracking? Yes Not So Bad Some Qty 2
b) Spalling? NO Problem -- -- 0
c) Reinforcement corrosion? Yes Not So Bad Some Qty 2
d) Poor concrete? Yes Not So Bad Some Qty 2
e) Less cover to reinforcement? Yes Not So Bad Some Qty 2
6 BEARINGS Component Weightage 10
NOT APPLICABLE
7 Right Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10
A- GENERAL
a) Erosion or scour at abutment? Yes Not So Bad Not Much Qty 1
b) Damage to foundation? Yes Not So Bad Some Qty 2
c) Movement of abutment? Yes Not So Bad Not Much Qty 1
d) Debris against abutment? Yes Not So Bad Not Much Qty 1
e) Vegetation growing on-or in abutment? Yes Not So Bad Not Much Qty 1
f) Scour near to retaining walls? Yes Not So Bad Some Qty 2
g) Movement of retaining walls? Yes Not So Bad Some Qty 2
h) Water leaking down through the expansion joint? Yes Not So Bad Not Much Qty 1
B- DRAINAGE SYSTEM
a) Not enough weepholes? Yes Not So Bad Not Much Qty 1
b) Weepholes not working? Yes Not So Bad Some Qty 2
c) Water leaking through the abutment? Yes Not So Bad Not Much Qty 1
C- CONCRETE WALLS
a) Cracking? Yes Not So Bad Some Qty 2
b) Spalling? Yes Not So Bad Some Qty 2
c) Corrosion of reinforcement? NO Problem -- -- 0
d) Poor concrete? Yes Not So Bad Some Qty 2
D- MASONRY WALLS
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Bulging? Yes Not So Bad Some Qty 2
c) Poor pointing? Yes Not So Bad Not Much Qty 1
d) Deterioration of bricks or stones? Yes Not So Bad Some Qty 2
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT
a) Scour at base of slopes? Yes Not So Bad Not Much Qty 1
b) Slippage of fill? Yes Not So Bad Not Much Qty 1
c) Erosion of fill? Yes Not So Bad Not Much Qty 1
d) Cracking of road or embankment edge? Yes Not So Bad Not Much Qty 1
e) Piping failure of fill? Yes Not So Bad Not Much Qty 1
8 Left Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10
A- GENERAL
a) Erosion or scour at abutment? Yes Not So Bad Not Much Qty 1
b) Damage to foundation? Yes Not So Bad Some Qty 2
c) Movement of abutment? Yes Not So Bad Some Qty 2
d) Debris against abutment? Yes Not So Bad Some Qty 2
e) Vegetation growing on-or in abutment? Yes Not So Bad Some Qty 2
f) Scour near to retaining walls? Yes Not So Bad Not Much Qty 1
g) Movement of retaining walls? Yes Not So Bad Some Qty 2
h) Water leaking down through the expansion joint? Yes Not So Bad Not Much Qty 1
B- DRAINAGE SYSTEM
a) Not enough weepholes? Yes Not So Bad Not Much Qty 1
b) Weepholes not working? Yes Not So Bad Some Qty 2
c) Water leaking through the abutment? Yes Not So Bad Not Much Qty 1
C- CONCRETE WALLS
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Spalling? Yes Not So Bad Not Much Qty 1
c) Corrosion of reinforcement? NO Problem -- -- 0
d) Poor concrete? Yes Not So Bad Some Qty 2
D- MASONRY WALLS
a) Cracking? Yes Not So Bad Some Qty 2
b) Bulging? Yes Not So Bad Not Much Qty 1
c) Poor pointing? NO Problem -- -- 0
d) Deterioration of bricks or stones? Yes Not So Bad Some Qty 2
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT
a) Scour at base of slopes? Yes Not So Bad Not Much Qty 1
b) Slippage of fill? Yes Not So Bad Not Much Qty 1
c) Erosion of fill? NO Problem -- -- 0
d) Cracking of road or embankment edge? Yes Not So Bad Some Qty 2
e) Piping failure of fill? Yes Not So Bad Not Much Qty 1
9 Embankments Component Weightage 10
A- STONE PITCHING SLOPE PROTECTION
a) Cracking? Yes Not So Bad Not Much Qty 1
b) Poor pointing? Yes Not So Bad Some Qty 2
c) Scour or erosion at edge? Yes Not So Bad Not Much Qty 1
d) Pieces broken off? Yes Not So Bad Not Much Qty 1
e) Piping failure of fill? NO Problem -- -- 0
B- SLOPE PROTECTION WITH CRATES
a) Not much movement of crates? Yes Not So Bad Some Qty 2
b) Damage to crates or ties? Yes Not So Bad Some Qty 2
C- PITCHING SLOPE PROTECTION WITH CONCRETE BLOCKS
a) Slope getting washed out? Yes Not So Bad Not Much Qty 1
b) Settlement? Yes Not So Bad Not Much Qty 1
10 RIVER BED Component Weightage 10
A- BED PROTECTION AND APRONS
a) Large holes in the river bed? Yes Not So Bad Not Much Qty 1
b) Loss of material Yes Not So Bad Not Much Qty 1
c) Crates broken away from pier or abutment? Yes Not So Bad Not Much Qty 1
d) Damage to wires or ties? NO Problem -- -- 0
B- STONE PITCHING OR CONCRETE BED PROTECTION AND APRONS
a) Scour at edge? NO Problem -- -- 0
b) Cracking? NO Problem -- -- 0
c) Spalling or stones missing? NO Problem -- -- 0
d) Erosion of surface? Yes Not So Bad Some Qty 2
e) Corrosion of reinforcement? Yes Not So Bad Some Qty 2

End of Report
