ID :3195 Bandal Maldevta

on Chainage 11.000 of Maldevta-Serki-Silla Road

In District Dehradun Under PD Dehradun Division


Critical Report on Bridge Condition

Form Filled By Kamal Kishor Uniyal [61004733]

Inspection Team

"Bridge is in safe condition but to avoid any further risk, the appron repairing, reconstruction of damaged bedding and side protection needs to be taken up on urgent basis."

(Kamal Kishor Uniyal)

Assistant Engineer Civil

on Jun 11, 2024

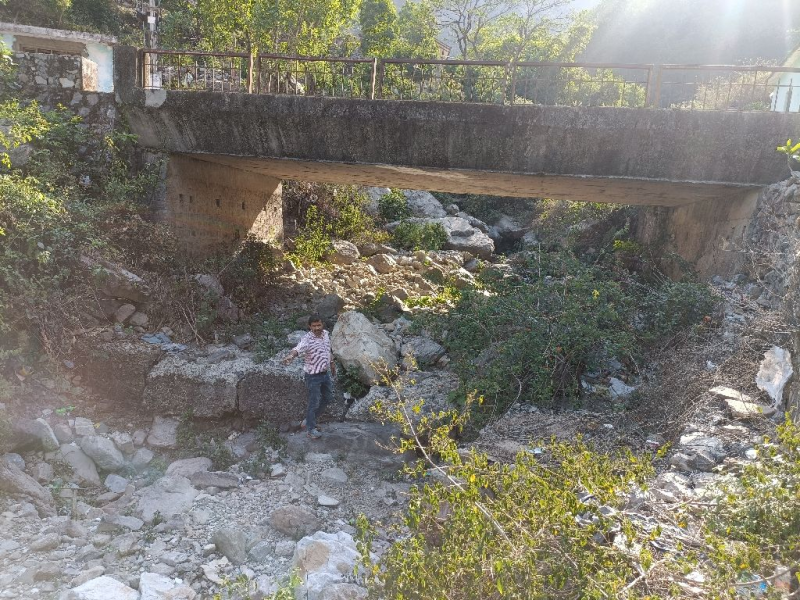

"Dislodged appron"

(Kamal Kishor Uniyal)

Assistant Engineer Civil

on Jun 11, 2024

Detail Report

# Parameter Problem ? How Bad? How Much?
1 ROAD APPROCHES AND DECK Component Weightage 10
A- ROAD SURFACE NEAR BRIDGE
a) Bumpy road surface near bridge? Yes Not So Bad Not Much Qty 1
B- DRAINAGE
a) Badly built road drainage near bridge? Yes Not So Bad Some Qty 2
b) Blocked or damaged road drains? NO Problem -- -- 0
c) Water on the deck? NO Problem -- -- 0
d) Blocked or damaged deck drains? Yes Not So Bad Some Qty 2
C- WEARING COAT
CONCRETE WEARING COURSE
a) Cracking? NO Problem -- -- 0
b) Spalling? Yes Not So Bad Not Much Qty 1
c) Reinforcement exposed? NO Problem -- -- 0
d) Poor concrete? NO Problem -- -- 0
e) Wear of surface due to small stones? NO Problem -- -- 0
D- KERBS & FOOTPATHS
a) Loose railing fixtures? NO Problem -- -- 0
a) Damaged or loose kerbs? NO Problem -- -- 0
2 PARAPETS, RAILINGS AND CRASH BARRIERS Component Weightage 10
a) Impact damaged? NO Problem -- -- 0
b) Loose or damaged fixings? NO Problem -- -- 0
c) Loose base of posts? NO Problem -- -- 0
d) Damaged coatirig or paint on steel surface? Yes Bad Much Qty 6
e) Corrosion on steel surface? Yes Bad Some Qty 5
f) Cracking on Masonary Parapets? NO Problem -- -- 0
g) Movement or bending of parapet? NO Problem -- -- 0
h) Poor pointing/ Plaster on parapet? Yes Not So Bad Some Qty 2
i) Deterioration of bricks or stones? NO Problem -- -- 0
3 EXPANSION JOINT AT ABUTMENTS & PIERS Component Weightage 10
a) Damage to concrete of deck end or dirt wall near joint? NO Problem -- -- 0
b) Debris or vegetation in joint? Yes Not So Bad Some Qty 2
c) Loose or damaged fixtures? NO Problem -- -- 0
d) Damage or corrosion to metal parts? NO Problem -- -- 0
e) Damage to rubber waterseals? NO Problem -- -- 0
4 RIVER Component Weightage 10
A- BLOCKAGES IN WATERWAY
a) Debris against piers or abutments? Yes Bad Some Qty 5
b) Remains of old bridge under or upstream of the bridge? NO Problem -- -- 0
c) Fencing or buildings under bridge? NO Problem -- -- 0
d) Trees or bushes.growing under bridge? NO Problem -- -- 0
B- CHANGE IN RIVER COURSE
a) River changing path upstream of bridge? NO Problem -- -- 0
b) New islands forming upstream of bridge? NO Problem -- -- 0
C- RIVER TRAINING WORKS
a) River attack beyond the upstream end of river training works? NO Problem -- -- 0
b) Damage to walls? Yes Not So Bad Some Qty 2
c) Loss of pitching? NO Problem -- -- 0
d) Damage to crates, timber, fencing, etc.? NO Problem -- -- 0
e) Damage to trees? NO Problem -- -- 0
5 SUPERSTRUCTURE Component Weightage 60
CONCRETE
General
a) Impact damage to girders, trusses or bracings? NO Problem -- -- 0
b) Debris or vegetation on beams, girders, trusses bracings or joints? NO Problem -- -- 0
c) Water coming through the deck? NO Problem -- -- 0
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? NO Problem -- -- 0
e) Not enough vertical & horizontal clearances? Yes Not So Bad Some Qty 2
CONCRETE BEAMS
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Corrosion of reinforcement? NO Problem -- -- 0
d) Poor concrete? NO Problem -- -- 0
CONCRETE UNDERSIDE OF DECK
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Reinforcement corrosion? NO Problem -- -- 0
d) Poor concrete? NO Problem -- -- 0
e) Less cover to reinforcement? NO Problem -- -- 0
6 BEARINGS Component Weightage 10
NOT APPLICABLE
7 Right Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10
A- GENERAL
a) Erosion or scour at abutment? NO Problem -- -- 0
b) Damage to foundation? NO Problem -- -- 0
c) Movement of abutment? NO Problem -- -- 0
d) Debris against abutment? Yes Not So Bad Some Qty 2
e) Vegetation growing on-or in abutment? NO Problem -- -- 0
f) Scour near to retaining walls? Yes Not So Bad Some Qty 2
g) Movement of retaining walls? NO Problem -- -- 0
h) Water leaking down through the expansion joint? NO Problem -- -- 0
B- DRAINAGE SYSTEM
a) Not enough weepholes? NO Problem -- -- 0
b) Weepholes not working? NO Problem -- -- 0
c) Water leaking through the abutment? NO Problem -- -- 0
C- CONCRETE WALLS
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Corrosion of reinforcement? NO Problem -- -- 0
d) Poor concrete? NO Problem -- -- 0
D- MASONRY WALLS
a) Cracking? NO Problem -- -- 0
b) Bulging? NO Problem -- -- 0
c) Poor pointing? NO Problem -- -- 0
d) Deterioration of bricks or stones? NO Problem -- -- 0
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT
a) Scour at base of slopes? NO Problem -- -- 0
b) Slippage of fill? NO Problem -- -- 0
c) Erosion of fill? NO Problem -- -- 0
d) Cracking of road or embankment edge? NO Problem -- -- 0
e) Piping failure of fill? NO Problem -- -- 0
8 Left Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10
A- GENERAL
a) Erosion or scour at abutment? NO Problem -- -- 0
b) Damage to foundation? NO Problem -- -- 0
c) Movement of abutment? NO Problem -- -- 0
d) Debris against abutment? Yes Not So Bad Some Qty 2
e) Vegetation growing on-or in abutment? NO Problem -- -- 0
f) Scour near to retaining walls? Yes Not So Bad Some Qty 2
g) Movement of retaining walls? NO Problem -- -- 0
h) Water leaking down through the expansion joint? NO Problem -- -- 0
B- DRAINAGE SYSTEM
a) Not enough weepholes? NO Problem -- -- 0
b) Weepholes not working? NO Problem -- -- 0
c) Water leaking through the abutment? NO Problem -- -- 0
C- CONCRETE WALLS
a) Cracking? NO Problem -- -- 0
b) Spalling? NO Problem -- -- 0
c) Corrosion of reinforcement? NO Problem -- -- 0
d) Poor concrete? NO Problem -- -- 0
D- MASONRY WALLS
a) Cracking? NO Problem -- -- 0
b) Bulging? NO Problem -- -- 0
c) Poor pointing? NO Problem -- -- 0
d) Deterioration of bricks or stones? NO Problem -- -- 0
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT
a) Scour at base of slopes? NO Problem -- -- 0
b) Slippage of fill? NO Problem -- -- 0
c) Erosion of fill? NO Problem -- -- 0
d) Cracking of road or embankment edge? NO Problem -- -- 0
e) Piping failure of fill? NO Problem -- -- 0
9 Embankments Component Weightage 10
A- STONE PITCHING SLOPE PROTECTION
a) Cracking? NO Problem -- -- 0
b) Poor pointing? NO Problem -- -- 0
c) Scour or erosion at edge? NO Problem -- -- 0
d) Pieces broken off? NO Problem -- -- 0
e) Piping failure of fill? NO Problem -- -- 0
B- SLOPE PROTECTION WITH CRATES
a) Not much movement of crates? NO Problem -- -- 0
b) Damage to crates or ties? NO Problem -- -- 0
C- PITCHING SLOPE PROTECTION WITH CONCRETE BLOCKS
a) Slope getting washed out? NO Problem -- -- 0
b) Settlement? NO Problem -- -- 0
10 RIVER BED Component Weightage 10
A- BED PROTECTION AND APRONS
a) Large holes in the river bed? Yes Bad Some Qty 5
b) Loss of material Yes Not So Bad Much Qty 3
c) Crates broken away from pier or abutment? NO Problem -- -- 0
d) Damage to wires or ties? NO Problem -- -- 0
B- STONE PITCHING OR CONCRETE BED PROTECTION AND APRONS
a) Scour at edge? Yes Bad Much Qty 6
b) Cracking? Yes Not So Bad Some Qty 2
c) Spalling or stones missing? Yes Not So Bad Some Qty 2
d) Erosion of surface? Yes Not So Bad Some Qty 2
e) Corrosion of reinforcement? NO Problem -- -- 0

End of Report
