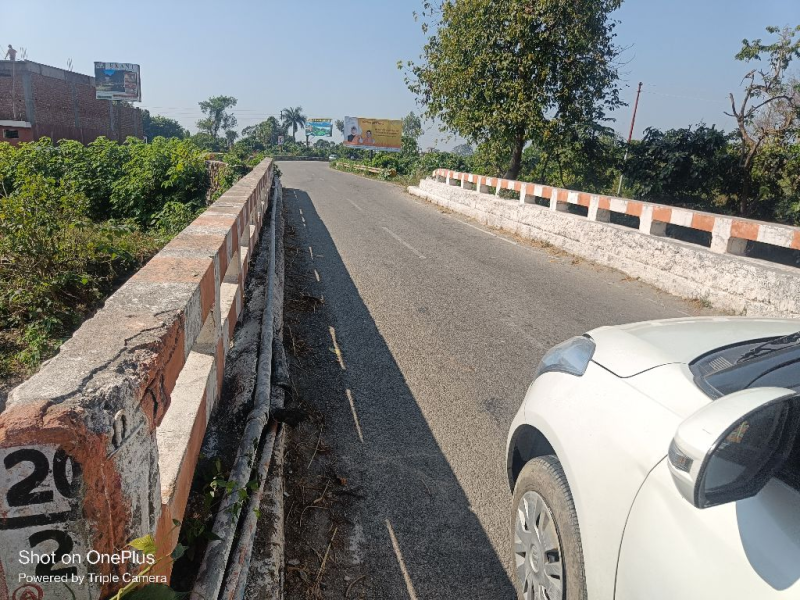

ID :432 Nihal Setu

on Chainage 36.000 of Ramnagar Kaladhungi Haldwani Kathgodam Chorgaliya Sitarganj Bizti state highway : .

In District Nanital Under CD Haldwani Division


Critical Report on Bridge Condition

Form Filled By Suneel Kumar [88008452]

Inspection Team

"वर्तमान में इस सेतुः के स्थान पर माननीय मुख्यमंत्री घोषणा के अंतर्गत 24 मीटर स्पान का डबल लेन सेतुः प्रस्तावित है।"

(Suneel Kumar)

Assistant Engineer Civil

on Nov 17, 2023

Detail Report

# Parameter Problem ? How Bad? How Much?
1 ROAD APPROCHES AND DECK Component Weightage 10
A- ROAD SURFACE NEAR BRIDGE
a) Bumpy road surface near bridge? NO Problem -- -- 0
B- DRAINAGE
a) Badly built road drainage near bridge? NO Problem -- -- 0
b) Blocked or damaged road drains? NO Problem -- -- 0
c) Water on the deck? NO Problem -- -- 0
d) Blocked or damaged deck drains? NO Problem -- -- 0
C- WEARING COAT
BITUMEN WEARING COURSE
a) Surface breaking up or lifting off? NO Problem -- -- 0
b) Cracking above joints ? NO Problem -- -- 0
D- KERBS & FOOTPATHS
a) Loose railing fixtures? Not Applicable -- -- --
a) Damaged or loose kerbs? Not Applicable -- -- --
2 PARAPETS, RAILINGS AND CRASH BARRIERS Component Weightage 10
a) Impact damaged? NO Problem -- -- 0
b) Loose or damaged fixings? NO Problem -- -- 0
c) Loose base of posts? NO Problem -- -- 0
d) Damaged coatirig or paint on steel surface? Not Applicable -- -- --
e) Corrosion on steel surface? Not Applicable -- -- --
f) Cracking on Masonary Parapets? Not Applicable -- -- --
g) Movement or bending of parapet? NO Problem -- -- 0
h) Poor pointing/ Plaster on parapet? NO Problem -- -- 0
i) Deterioration of bricks or stones? NO Problem -- -- 0
3 EXPANSION JOINT AT ABUTMENTS & PIERS Component Weightage 10
a) Damage to concrete of deck end or dirt wall near joint? NO Problem -- -- 0
b) Debris or vegetation in joint? NO Problem -- -- 0
c) Loose or damaged fixtures? NO Problem -- -- 0
d) Damage or corrosion to metal parts? Not Applicable -- -- --
e) Damage to rubber waterseals? Not Applicable -- -- --
4 RIVER Component Weightage 10
A- BLOCKAGES IN WATERWAY
a) Debris against piers or abutments? Yes Not So Bad Some Qty 2
b) Remains of old bridge under or upstream of the bridge? Not Applicable -- -- --
c) Fencing or buildings under bridge? Not Applicable -- -- --
d) Trees or bushes.growing under bridge? NO Problem -- -- 0
B- CHANGE IN RIVER COURSE
a) River changing path upstream of bridge? Yes Not So Bad Some Qty 2
b) New islands forming upstream of bridge? NO Problem -- -- 0
C- RIVER TRAINING WORKS
a) River attack beyond the upstream end of river training works? Yes Not So Bad Some Qty 2
b) Damage to walls? Yes Not So Bad Some Qty 2
c) Loss of pitching? Not Applicable -- -- --
d) Damage to crates, timber, fencing, etc.? Not Applicable -- -- --
e) Damage to trees? Not Applicable -- -- --
5 SUPERSTRUCTURE Component Weightage 60
CONCRETE
General
a) Impact damage to girders, trusses or bracings? Not Applicable -- -- --
b) Debris or vegetation on beams, girders, trusses bracings or joints? Not Applicable -- -- --
c) Water coming through the deck? Yes Not So Bad Some Qty 2
d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? NO Problem -- -- 0
e) Not enough vertical & horizontal clearances? NO Problem -- -- 0
CONCRETE BEAMS
a) Cracking? Yes Not So Bad Some Qty 2
b) Spalling? NO Problem -- -- 0
c) Corrosion of reinforcement? NO Problem -- -- 0
d) Poor concrete? NO Problem -- -- 0
CONCRETE UNDERSIDE OF DECK
a) Cracking? Yes Not So Bad Some Qty 2
b) Spalling? NO Problem -- -- 0
c) Reinforcement corrosion? NO Problem -- -- 0
d) Poor concrete? NO Problem -- -- 0
e) Less cover to reinforcement? NO Problem -- -- 0
6 BEARINGS Component Weightage 10
METAL BEARINGS
a) Debris or vegetation around bearings? NO Problem -- -- 0
b) Bad drainage? NO Problem -- -- 0
c) Not enough room for the bridge span to move? NO Problem -- -- 0
d) Bearing not seated properly? NO Problem -- -- 0
e) Bridge span not seated properly on bearing? NO Problem -- -- 0
f) Damaged bedding mortar? NO Problem -- -- 0
g) Damaged or loose earthquake restraints? NO Problem -- -- 0
METAL BEARINGS
a) Parts not properly seated? NO Problem -- -- 0
b) Parts not free to move? NO Problem -- -- 0
c) Problem with the lubrication system? NO Problem -- -- 0
d) Sliding surfaces damaged? NO Problem -- -- 0
e) Cracks or bends in metal parts/ Bearing? NO Problem -- -- 0
f) Corrosion of metal parts? NO Problem -- -- 0
7 Right Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10
A- GENERAL
a) Erosion or scour at abutment? Yes Not So Bad Some Qty 2
b) Damage to foundation? NO Problem -- -- 0
c) Movement of abutment? NO Problem -- -- 0
d) Debris against abutment? Yes Not So Bad Some Qty 2
e) Vegetation growing on-or in abutment? NO Problem -- -- 0
f) Scour near to retaining walls? Yes Not So Bad Some Qty 2
g) Movement of retaining walls? NO Problem -- -- 0
h) Water leaking down through the expansion joint? NO Problem -- -- 0
B- DRAINAGE SYSTEM
a) Not enough weepholes? NO Problem -- -- 0
b) Weepholes not working? NO Problem -- -- 0
c) Water leaking through the abutment? NO Problem -- -- 0
C- CONCRETE WALLS
a) Cracking? Not Applicable -- -- --
b) Spalling? Not Applicable -- -- --
c) Corrosion of reinforcement? Not Applicable -- -- --
d) Poor concrete? Not Applicable -- -- --
D- MASONRY WALLS
a) Cracking? Yes Not So Bad Some Qty 2
b) Bulging? Yes Not So Bad Some Qty 2
c) Poor pointing? NO Problem -- -- 0
d) Deterioration of bricks or stones? Yes Not So Bad Some Qty 2
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT
a) Scour at base of slopes? Yes Not So Bad Some Qty 2
b) Slippage of fill? Yes Not So Bad Some Qty 2
c) Erosion of fill? Yes Not So Bad Some Qty 2
d) Cracking of road or embankment edge? Yes Not So Bad Some Qty 2
e) Piping failure of fill? NO Problem -- -- 0
8 Left Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10
A- GENERAL
a) Erosion or scour at abutment? Yes Not So Bad Some Qty 2
b) Damage to foundation? NO Problem -- -- 0
c) Movement of abutment? NO Problem -- -- 0
d) Debris against abutment? Yes Not So Bad Some Qty 2
e) Vegetation growing on-or in abutment? NO Problem -- -- 0
f) Scour near to retaining walls? Yes Not So Bad Some Qty 2
g) Movement of retaining walls? NO Problem -- -- 0
h) Water leaking down through the expansion joint? NO Problem -- -- 0
B- DRAINAGE SYSTEM
a) Not enough weepholes? NO Problem -- -- 0
b) Weepholes not working? NO Problem -- -- 0
c) Water leaking through the abutment? NO Problem -- -- 0
C- CONCRETE WALLS
a) Cracking? Not Applicable -- -- --
b) Spalling? Not Applicable -- -- --
c) Corrosion of reinforcement? Not Applicable -- -- --
d) Poor concrete? Not Applicable -- -- --
D- MASONRY WALLS
a) Cracking? Yes Not So Bad Some Qty 2
b) Bulging? Yes Not So Bad Some Qty 2
c) Poor pointing? NO Problem -- -- 0
d) Deterioration of bricks or stones? Yes Not So Bad Some Qty 2
E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT
a) Scour at base of slopes? Yes Not So Bad Some Qty 2
b) Slippage of fill? Yes Not So Bad Some Qty 2
c) Erosion of fill? Yes Not So Bad Some Qty 2
d) Cracking of road or embankment edge? NO Problem -- -- 0
e) Piping failure of fill? Yes Not So Bad Some Qty 2
9 Embankments Component Weightage 10
A- STONE PITCHING SLOPE PROTECTION
a) Cracking? Not Applicable -- -- --
b) Poor pointing? Not Applicable -- -- --
c) Scour or erosion at edge? Not Applicable -- -- --
d) Pieces broken off? Not Applicable -- -- --
e) Piping failure of fill? Not Applicable -- -- --
B- SLOPE PROTECTION WITH CRATES
a) Not much movement of crates? Not Applicable -- -- --
b) Damage to crates or ties? Not Applicable -- -- --
C- PITCHING SLOPE PROTECTION WITH CONCRETE BLOCKS
a) Slope getting washed out? Not Applicable -- -- --
b) Settlement? Not Applicable -- -- --
10 RIVER BED Component Weightage 10
A- BED PROTECTION AND APRONS
a) Large holes in the river bed? Not Applicable -- -- --
b) Loss of material Not Applicable -- -- --
c) Crates broken away from pier or abutment? Not Applicable -- -- --
d) Damage to wires or ties? Not Applicable -- -- --
B- STONE PITCHING OR CONCRETE BED PROTECTION AND APRONS
a) Scour at edge? Not Applicable -- -- --
b) Cracking? Not Applicable -- -- --
c) Spalling or stones missing? Not Applicable -- -- --
d) Erosion of surface? Not Applicable -- -- --
e) Corrosion of reinforcement? Not Applicable -- -- --

End of Report
