on Chainage 0.000 of road unknown
In District Pauri Under PD Pauri Division
Critical Report on Bridge Condition
Form Filled By Martunjay Sharma [90004125]
Inspection Team

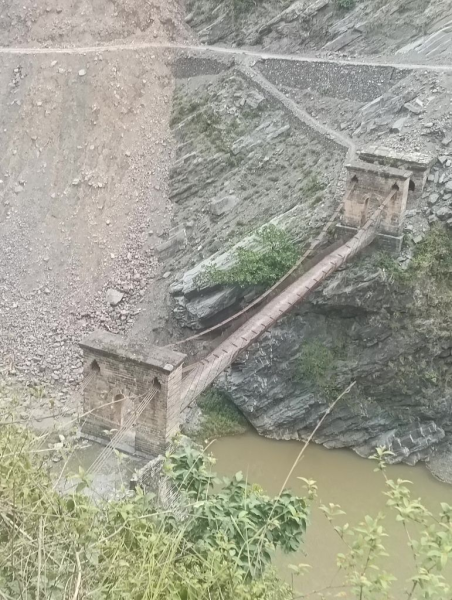

"यह झूला पुल 43 mtr लंबाई में निर्मित है पुल की दशा अत्यधिक खराब है ,रेलिंग पूर्णतः क्षतिग्रस्त हो गई है ,,डेक स्लैब पूर्णतः क्षतिग्रस्त हो चुकी हाइपुल का रंग रोगन खराब हो चुका है । पुल के लेफ्ट साइड (जो कि 40 mtr लंबाई में है )की अप्रोच क्षतिग्रस्त हो गई है मात्र 60 cm चौड़ाई reh गई है। पुल के राइट साइड की अप्रोच (लगभग 250 mtr)क्षतिग्रस्त हो चुकी है पुल के अपस्ट्रीम में 150 mtr दूरी पर मोटर पुल निर्मित है तड़पीपुल के दोनों तरफ मोटर मार्ग है फिर भी इस पुल के अपस्ट्रीम में लेफ्ट साइड में लैंडस्लाइड होने है ,जिससे मोटर मार्ग के बंद होने पर किन्सुर गांव के लगभग 90 परिवार ,एवं इस और रहने वाले अनेक गांव को तहसील मुख्यालय से जोड़ने का ऐक मात्र साधन यही पैदल सेतु है "
(Martunjay Sharma)
Assistant Engineer Civil
on Jun 13, 2026
Detail Report
| # | Parameter | Problem ? | How Bad? | How Much? | |
|---|---|---|---|---|---|
| 1 | ROAD APPROCHES AND DECK Component Weightage 10 | ||||
| A- ROAD SURFACE NEAR BRIDGE | |||||
| a) Bumpy road surface near bridge? | Yes | Bad | Not Much Qty | 4 | |
| B- DRAINAGE | |||||
| a) Badly built road drainage near bridge? | Yes | Bad | Much Qty | 6 | |
| b) Blocked or damaged road drains? | Yes | Very Bad | Some Qty | 8 | |
| c) Water on the deck? | Yes | Very Bad | Much Qty | 9 | |
| d) Blocked or damaged deck drains? | Yes | Very Bad | Much Qty | 9 | |
| C- WEARING COAT | |||||
| BITUMEN WEARING COURSE | |||||
| a) Surface breaking up or lifting off? | Yes | Bad | Much Qty | 6 | |
| b) Cracking above joints ? | Yes | Bad | Much Qty | 6 | |
| D- KERBS & FOOTPATHS | |||||
| a) Loose railing fixtures? | Yes | Very Bad | Much Qty | 9 | |
| a) Damaged or loose kerbs? | Not Applicable | -- | -- | -- | |
| 2 | PARAPETS, RAILINGS AND CRASH BARRIERS Component Weightage 10 | ||||
| a) Impact damaged? | Yes | Bad | Much Qty | 6 | |
| b) Loose or damaged fixings? | Yes | Bad | Much Qty | 6 | |
| c) Loose base of posts? | Yes | Bad | Some Qty | 5 | |
| d) Damaged coatirig or paint on steel surface? | Yes | Bad | Much Qty | 6 | |
| e) Corrosion on steel surface? | NO Problem | -- | -- | 0 | |
| f) Cracking on Masonary Parapets? | NO Problem | -- | -- | 0 | |
| g) Movement or bending of parapet? | Yes | Not So Bad | Not Much Qty | 1 | |
| h) Poor pointing/ Plaster on parapet? | Yes | Bad | Some Qty | 5 | |
| i) Deterioration of bricks or stones? | Yes | Not So Bad | Some Qty | 2 | |
| 3 | EXPANSION JOINT AT ABUTMENTS & PIERS Component Weightage 10 | ||||
| a) Damage to concrete of deck end or dirt wall near joint? | Not Applicable | -- | -- | -- | |
| b) Debris or vegetation in joint? | Yes | Bad | Much Qty | 6 | |
| c) Loose or damaged fixtures? | Yes | Bad | Some Qty | 5 | |
| d) Damage or corrosion to metal parts? | NO Problem | -- | -- | 0 | |
| e) Damage to rubber waterseals? | Not Applicable | -- | -- | -- | |
| 4 | RIVER Component Weightage 10 | ||||
| A- BLOCKAGES IN WATERWAY | |||||
| a) Debris against piers or abutments? | NO Problem | -- | -- | 0 | |
| b) Remains of old bridge under or upstream of the bridge? | NO Problem | -- | -- | 0 | |
| c) Fencing or buildings under bridge? | NO Problem | -- | -- | 0 | |
| d) Trees or bushes.growing under bridge? | NO Problem | -- | -- | 0 | |
| B- CHANGE IN RIVER COURSE | |||||
| a) River changing path upstream of bridge? | Not Applicable | -- | -- | -- | |
| b) New islands forming upstream of bridge? | Not Applicable | -- | -- | -- | |
| C- RIVER TRAINING WORKS | |||||
| a) River attack beyond the upstream end of river training works? | Not Applicable | -- | -- | -- | |
| b) Damage to walls? | NO Problem | -- | -- | 0 | |
| c) Loss of pitching? | Not Applicable | -- | -- | -- | |
| d) Damage to crates, timber, fencing, etc.? | Not Applicable | -- | -- | -- | |
| e) Damage to trees? | Yes | Not So Bad | Not Much Qty | 1 | |
| 5 | SUPERSTRUCTURE Component Weightage 60 | ||||
| STEEL GIRDERS | |||||
| General | |||||
| a) Impact damage to girders, trusses or bracings? | Yes | Bad | Not Much Qty | 4 | |
| b) Debris or vegetation on beams, girders, trusses bracings or joints? | Yes | Not So Bad | Not Much Qty | 1 | |
| c) Water coming through the deck? | NO Problem | -- | -- | 0 | |
| d) Water from the deck drainage flowing on to girders, trusses, beams or bracings? | NO Problem | -- | -- | 0 | |
| e) Not enough vertical & horizontal clearances? | NO Problem | -- | -- | 0 | |
| STEEL GIRDERS AND BRACINGS | |||||
| a) Deterioration of paint or galvanising | Yes | Very Bad | Much Qty | 9 | |
| b) Corrosion? | Yes | Not So Bad | Not Much Qty | 1 | |
| c) Bends in webs, flanges, stiffeners or bracings? | Yes | Not So Bad | Not Much Qty | 1 | |
| d) Loose bolts or rivets? | Yes | Not So Bad | Some Qty | 2 | |
| e) Cracking? | NO Problem | -- | -- | 0 | |
| STEEL UNDERSIDE OF DECK | |||||
| a) Deterioration of paint or galvanising? | Yes | Bad | Much Qty | 6 | |
| b) Corrosion? | Yes | Not So Bad | Much Qty | 3 | |
| c) Bends in stringers or plates? | NO Problem | -- | -- | 0 | |
| d) Loose bolts or rivets? | Yes | Bad | Some Qty | 5 | |
| e) Cracking? | NO Problem | -- | -- | 0 | |
| 6 | BEARINGS Component Weightage 10 | ||||
| NOT APPLICABLE | |||||
| 7 | Right Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10 | ||||
| A- GENERAL | |||||
| a) Erosion or scour at abutment? | NO Problem | -- | -- | 0 | |
| b) Damage to foundation? | NO Problem | -- | -- | 0 | |
| c) Movement of abutment? | NO Problem | -- | -- | 0 | |
| d) Debris against abutment? | Yes | Bad | Not Much Qty | 4 | |
| e) Vegetation growing on-or in abutment? | Yes | Not So Bad | Some Qty | 2 | |
| f) Scour near to retaining walls? | Yes | Not So Bad | Some Qty | 2 | |
| g) Movement of retaining walls? | Yes | Bad | Much Qty | 6 | |
| h) Water leaking down through the expansion joint? | NO Problem | -- | -- | 0 | |
| B- DRAINAGE SYSTEM | |||||
| a) Not enough weepholes? | Yes | Not So Bad | Not Much Qty | 1 | |
| b) Weepholes not working? | NO Problem | -- | -- | 0 | |
| c) Water leaking through the abutment? | NO Problem | -- | -- | 0 | |
| C- CONCRETE WALLS | |||||
| a) Cracking? | Not Applicable | -- | -- | -- | |
| b) Spalling? | Not Applicable | -- | -- | -- | |
| c) Corrosion of reinforcement? | Not Applicable | -- | -- | -- | |
| d) Poor concrete? | Not Applicable | -- | -- | -- | |
| D- MASONRY WALLS | |||||
| a) Cracking? | Yes | Not So Bad | Not Much Qty | 1 | |
| b) Bulging? | NO Problem | -- | -- | 0 | |
| c) Poor pointing? | Yes | Not So Bad | Much Qty | 3 | |
| d) Deterioration of bricks or stones? | NO Problem | -- | -- | 0 | |
| E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT | |||||
| a) Scour at base of slopes? | NO Problem | -- | -- | 0 | |
| b) Slippage of fill? | NO Problem | -- | -- | 0 | |
| c) Erosion of fill? | NO Problem | -- | -- | 0 | |
| d) Cracking of road or embankment edge? | NO Problem | -- | -- | 0 | |
| e) Piping failure of fill? | Not Applicable | -- | -- | -- | |
| 8 | Left Side ABUTMENT, WING WALLS & RETAINING WALLS Component Weightage 10 | ||||
| A- GENERAL | |||||
| a) Erosion or scour at abutment? | NO Problem | -- | -- | 0 | |
| b) Damage to foundation? | NO Problem | -- | -- | 0 | |
| c) Movement of abutment? | NO Problem | -- | -- | 0 | |
| d) Debris against abutment? | Yes | Bad | Not Much Qty | 4 | |
| e) Vegetation growing on-or in abutment? | Yes | Bad | Not Much Qty | 4 | |
| f) Scour near to retaining walls? | Yes | Bad | Not Much Qty | 4 | |
| g) Movement of retaining walls? | Yes | Not So Bad | Some Qty | 2 | |
| h) Water leaking down through the expansion joint? | NO Problem | -- | -- | 0 | |
| B- DRAINAGE SYSTEM | |||||
| a) Not enough weepholes? | NO Problem | -- | -- | 0 | |
| b) Weepholes not working? | NO Problem | -- | -- | 0 | |
| c) Water leaking through the abutment? | NO Problem | -- | -- | 0 | |
| C- CONCRETE WALLS | |||||
| a) Cracking? | Not Applicable | -- | -- | -- | |
| b) Spalling? | Not Applicable | -- | -- | -- | |
| c) Corrosion of reinforcement? | Not Applicable | -- | -- | -- | |
| d) Poor concrete? | Not Applicable | -- | -- | -- | |
| D- MASONRY WALLS | |||||
| a) Cracking? | NO Problem | -- | -- | 0 | |
| b) Bulging? | NO Problem | -- | -- | 0 | |
| c) Poor pointing? | Yes | Very Bad | Not Much Qty | 7 | |
| d) Deterioration of bricks or stones? | Yes | Not So Bad | Not Much Qty | 1 | |
| E- EMBANKMENTS AND FILL IN FRONT OF ABUTMENT | |||||
| a) Scour at base of slopes? | NO Problem | -- | -- | 0 | |
| b) Slippage of fill? | NO Problem | -- | -- | 0 | |
| c) Erosion of fill? | NO Problem | -- | -- | 0 | |
| d) Cracking of road or embankment edge? | Yes | Bad | Much Qty | 6 | |
| e) Piping failure of fill? | Not Applicable | -- | -- | -- | |
| 9 | Embankments Component Weightage 10 | ||||
| A- STONE PITCHING SLOPE PROTECTION | |||||
| a) Cracking? | NO Problem | -- | -- | 0 | |
| b) Poor pointing? | NO Problem | -- | -- | 0 | |
| c) Scour or erosion at edge? | NO Problem | -- | -- | 0 | |
| d) Pieces broken off? | NO Problem | -- | -- | 0 | |
| e) Piping failure of fill? | Not Applicable | -- | -- | -- | |
| B- SLOPE PROTECTION WITH CRATES | |||||
| a) Not much movement of crates? | Not Applicable | -- | -- | -- | |
| b) Damage to crates or ties? | Not Applicable | -- | -- | -- | |
| C- PITCHING SLOPE PROTECTION WITH CONCRETE BLOCKS | |||||
| a) Slope getting washed out? | Not Applicable | -- | -- | -- | |
| b) Settlement? | Not Applicable | -- | -- | -- | |
| 10 | RIVER BED Component Weightage 10 | ||||
| A- BED PROTECTION AND APRONS | |||||
| a) Large holes in the river bed? | NO Problem | -- | -- | 0 | |
| b) Loss of material | NO Problem | -- | -- | 0 | |
| c) Crates broken away from pier or abutment? | NO Problem | -- | -- | 0 | |
| d) Damage to wires or ties? | NO Problem | -- | -- | 0 | |
| B- STONE PITCHING OR CONCRETE BED PROTECTION AND APRONS | |||||
| a) Scour at edge? | NO Problem | -- | -- | 0 | |
| b) Cracking? | NO Problem | -- | -- | 0 | |
| c) Spalling or stones missing? | NO Problem | -- | -- | 0 | |
| d) Erosion of surface? | NO Problem | -- | -- | 0 | |
| e) Corrosion of reinforcement? | NO Problem | -- | -- | 0 | |
End of Report
